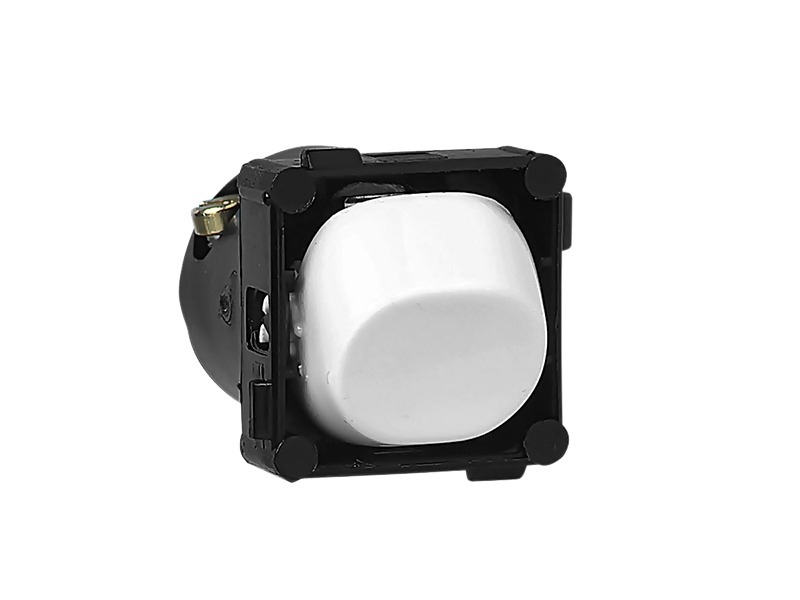

30M Switch, 1 Pole, 1-Way/2-Way, 250VAC, 10A
Switch Mechanisms, 30 Series, 250V 10A - 1 way / 2 way.
Key Features
- Terminal bores of 4.1 mm diameter accommodate 4 x 1.5 sq mm or 3 x 2.5 sq mm cable
- Body fits 22 mm diameter hole
- Motor rating is 100
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Standard Series, Series 30 |
| Wiring system | 1-pole switch |
| Method of operation | Rocker |
| Assembly arrangement | Basic element |
| Push button switch | |
| Number of rockers | 1 |
| Mounting method | Flush mounted |
| Type of fastening | |
| Material | |
| Material quality | PVC |
| Halogen free | |
| Surface treatment | Gloss |
| Type of surface | |
| Colour | |
| RAL-number (akin) | |
| Label space/information surface | |
| Illumination | Without illumination |
| Suitable for degree of protection (IP) | |
| Nominal voltage | 250 VAC |
| Switching current | 10 A |
| Switching current for fluorescent lamps | AX |
| Feedback-signal contact | |
| Washing machine switch | |
| Number of Poles | 1 |
| Legend | Without imprint |
| Standard | S/1 Certified |
