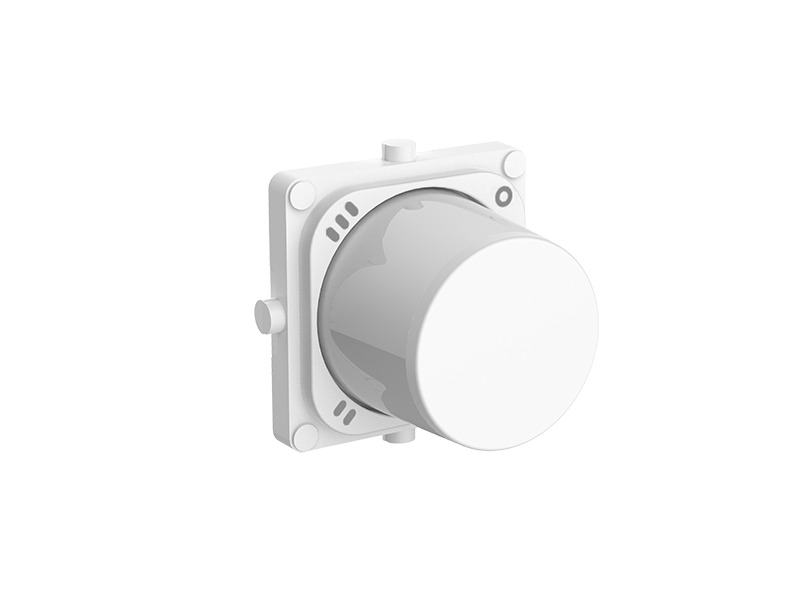

40RSM3KB Clipsal Iconic - Dolly Rotary Off-1-2-3, 4 colour
Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.
Clipsal Iconic - Dolly Rotary Off-1-2-3, 4 colour
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Depth | 16 mm |
| Height | 19 mm |
| Material | Knob - PC (polycarbonate) knob cap - ABS (acrylonitrile butadiene-styrene) Switch Housing - PC (polycarbonate) Switch Housing - PA66 |
| Number of gangs | |
| Rated current | A |
| Surface treatment | Untreated |
| Switch function | |
| Width | 19 mm |
| Brand Name | Clipsal Iconic |
| Product or component type | Rotary knob |
| Device mounting | Clip-in |
| Device presentation | |
| Fixing mode | Clip in |
| Local signalling | |
| Colour tint | Anthracite Cool Grey Vivid White Warm Grey |
| Surface finish | Matt |
| Type of packing | Ziplock polybag |
| Quantity per set | Set of 10 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | [0deg. - 60deg.] deg C |
| Dielectric strength | V |
| Ambient air temperature for operation | [0deg. - 45deg.] deg C |
| Relative humidity | [10percent - 95percent] percent |
| Electrical durability | cycles |
| Connections - terminals | |
| Shape of screw head | |
| Clamping connection capacity | |
| Wire stripping length | mm |
| Product weight | 0.02 kg |
| Standards | |
| Product certifications | |
| IP degree of protection | |
| Installation direction | |
| Actuator | Rotary |
| [Ue] rated operational voltage | |
| Load type | |
| Number of terminals | |
| Device application | |
| Additional information | |
| Provided equipment | Rotary knob carrier |
| Distance between centers | mm |
| Number of rocker | |
| Switch additional information | |
| Marking | 0-1-2-3 |
| Light source | |
| Current consumption | mA |
| Signalling colour | |
| Condition of use |
