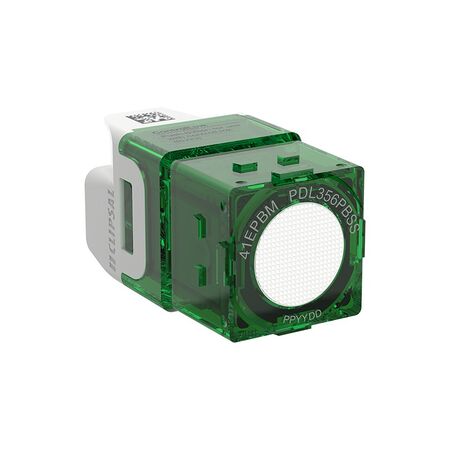

41EPBM Clipsal Iconic
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal Iconic |
| Product or component type | Momentary switch |
| Wiring device mounting | Flush |
| Device presentation | Mechanism |
| Actuator | Pushbutton |
| Range compatibility | Clipsal Iconic |
| Fixing mode | Clip-in |
| Colour tint | Vivid White |
| Surface finish | Glossy |
| Type of packing | Box |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | [0,60] deg C |
| Control Method | Remote pushbutton for ControlLink |
| Rated operational voltage | 240 V, AC, 50Hz |
| Load type | No Load - Control Only |
| Power range | 150mA W |
| Minimmum load rating | |
| Neutral required | |
| Ambient air temperature for operation | [0,45] deg C |
| Ambient humidity for operation | [0,90] Percent |
| Connection type | Termnals |
| Number of terminals | 2 |
| Shape of screw head | Square drive + phillips head |
| Material | Top Case (Green) - PC (Makrolon® 2407), UL94 V-2 |
| Height | 23 mm |
| Width | 23 mm |
| Depth | 40 mm |
| Embedding depth | 38 mm |
| Standards | AS/NZS 60669.2.1 |
| Number of mechanisms per plate | |
| Max load per mechanism | |
| ControlLink capable | Yes |
| Max controlLink cable distance | 30 metres |
| LED Indicator | No |
| Configuration method | |
| Control from Wiser Room App | No |
