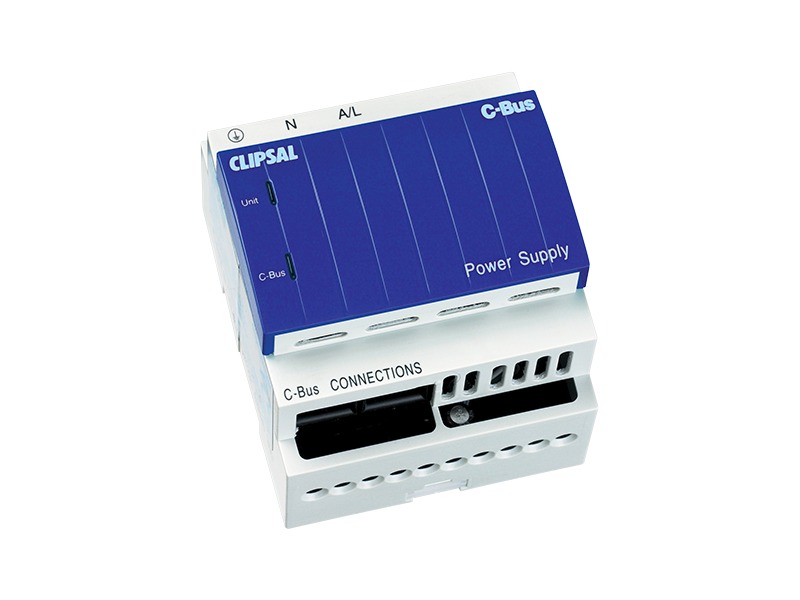

5500PS Power Supply, 350mA, 250V
C-Bus Power Supply, DIN Rail Mounted, C-Bus Power Supply, DIN Rail mounted, 350mA.
Key Features
- 3,750 V RMS AC isolation mains/C-Bus
- 3 Seconds Warm-up time
- High efficiency switched mode power supply design
- DIN Rail mounted
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
Type | Value |
---|---|
Brand Name | Clipsal |
Sub Brand | C-Bus |
Voltage type of supply voltage | AC |
1st secondary output voltage at AC | |
2nd secondary output voltage at AC | |
3rd secondary output voltage at AC | |
1st secondary output voltage at DC | 32 - 39 V |
2nd secondary output voltage at DC | |
3rd secondary output voltage at DC | |
Max. output current 1 | 350 mA |
Max. output current 2 | |
Max. output current 3 | |
Secondary voltage adjustable | |
Short-circuit-proof | |
Rated supply voltage at AC 50 Hz | 240 V |
Rated supply voltage at AC 60 Hz | V |
Rated supply voltage at DC | |
Output voltage stabilized | |
Power consumption | W |
Power output | W |
Stabilized | |
Type of electric connection | |
Rail mounting possible | |
Wall mounting possible | |
Modular version | |
Built-in height | |
Direct mounting possible | |
Width | mm |
Height | mm |
Depth | mm |
Suited for safety functions | |
SIL according to IEC 61508 | |
SIL according to IEC 62061 | |
Performance level acc. to EN ISO 13849-1 | |
Degree of protection (IP) |
