56CSC540-EO

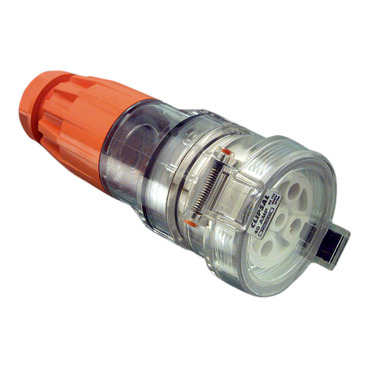

Clipsal - 56 Series, Cord Extension Socket, 5 Round PIN, 500V, 40A - Electric Orange


$293.70 List price: $440.60
+

Weight: 0.400 kg

Product Name/Title: Clipsal - 56 Series, Cord Extension Socket, 5 Round PIN, 500V, 40A - Electric Orange

Brand: Clipsal

SKU: 56CSC540-EO

Alternatively Known As: Industrial Cord Extension Socket, 5 Pin Socket, 40A Extension Socket

Technical Specifications
  • Rated current: 40A
  • Rated operational voltage: 500V AC 50Hz
  • Material: Polycarbonate housing
  • IP Rating: IP66
  • Connections: Screw terminals 2.5-25 mm²
  • Socket number: 1
  • Cable entry: Cable gland
  • Ambient air temperature for operation: -25 to 75 °C
  • Dimensions (H x L x W): 90mm x 184mm x 90mm
  • Weight: 0.4 kg
Key Features
  • Rated current of 40A and operational voltage of 500V AC.
  • IP66 rated for protection against dust and water.
  • Screw terminals for secure connections.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power supply for machinery and equipment
  • Commercial: Small commercial utilities
Standards & Compliance
  • Complies with AS/NZS 3120 and EN 60309-2.
Environmental Benefits
  • Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Cord Extension Socket is available now for immediate purchase. Ideal for industrial and commercial applications.
