56SPO310-RW

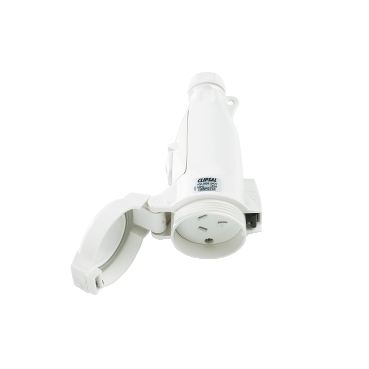

Clipsal - 56 Series, Pendant Outlet, 250V, 10A, 3 Flat PIN, 2 Pole - Resistant White Electric


$126.90 List price: $190.30
+

Weight: 0.260 kg

Product Name/Title: Clipsal - 56 Series, Pendant Outlet, 250V, 10A, 3 Flat PIN, 2 Pole - Resistant White Electric

Brand: Clipsal

SKU: 56SPO310-RW

Alternatively Known As: Industrial Pendant Outlet, 56 Series Outlet, Clipsal Pendant Socket

Technical Specifications
  • Rated current: 10A
  • Rated operational voltage: 250V AC 50Hz
  • Number of poles: 2
  • Socket number: 1
  • Connections: screw terminals 0.75-2.5 mm²
  • Cable entry: cable gland
  • Material: PBT housing, brass sleeves
  • Thread type: M20
  • Ambient air temperature for operation: -25 to 75 °C
  • Dimensions (H x L x W): 83mm x 183mm x 83mm
  • Weight: 0.26 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Designed for industrial applications with a robust build.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial
  • Industry
  • Utility
Standards & Compliance
  • Complies with AS/NZS 3120 and EN 60309-2 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Pendant Outlet is available now for immediate purchase. Ideal for small commercial and industrial applications.

56SPO310-RW (56SPO310-RW, 206 Kb) [Download]
