56SO310L-RW

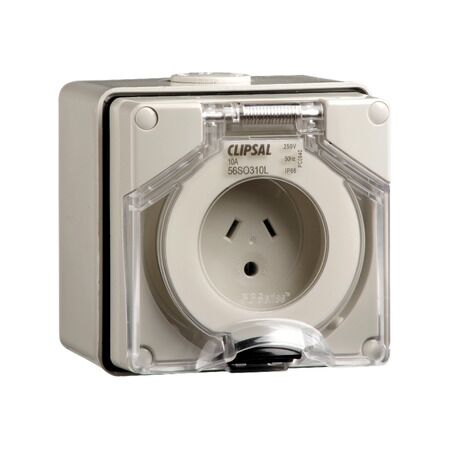

Clipsal - 56 Series, Surface Socket, IP66, 250V 10A - 2 Flat Pins and Round Earth Chemical Grey


$95.50 List price: $143.20
+

Weight: 0.300 kg

Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 250V 10A - 2 Flat Pins and Round EarthChemical Grey

Brand: Clipsal

SKU: 56SO310L-RW

Alternatively Known As: Industrial Surface Socket, Clipsal 56 Series Socket, IP66 Socket

Technical Specifications
  • Rated current: 10 A
  • Rated operational voltage: 250 V AC 50 Hz
  • Material: ABS housing, brass screws
  • Cable outer diameter: 9-29 mm
  • Socket number: 1
  • Poles description: 1P + N + E
  • Tightening torque: 0.8 N.m
  • Outlet standard: Australian/New Zealand
  • Dimensions (H x L x W): 107mm x 77mm x 101mm
  • Weight: 0.3 kg
Key Features
  • IP66 rated for protection against dust and water
  • Designed for surface mounting
  • Screw terminals for secure connections
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power supply for machinery and equipment
  • Utility: Suitable for small commercial applications
Standards & Compliance
  • Complies with AS/NZS 4417.1 and AS/NZS 3112 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, reducing hazardous substances.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial and small commercial applications.
