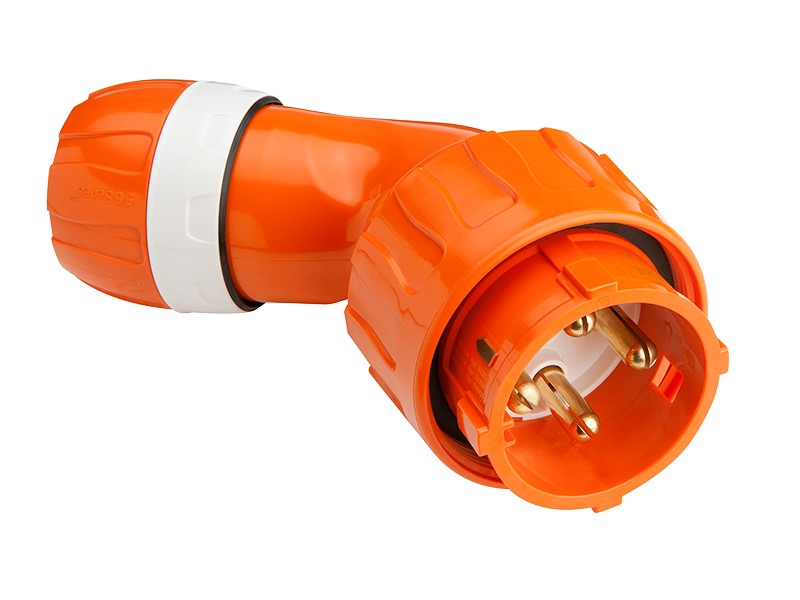

56PA450 Plug Top, Angled, 4 Round Pin, 50A, 500V, IP66
Plugs and Extension Sockets, Angle Plugs - IP66, 500V 50A - 4 Round pins.
Key Features
- 37 mm pins
- 4 round pins
- 10 - 16 sq mm conductor terminal
- M250 motor rating
- Stabilised rigid polycarbonate
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Series 56 |
| IEC-amperage | 50 A |
| Amperage acc. UL/CSA (for UL-version) | |
| Number of poles | |
| Clock hour position | 7 h |
| Identification colour | Black |
| Phase inverter | |
| Degree of protection (IP) | |
| Connection system | Screwed terminal |
| Cable entry | Gland nut mm |
| Angle of plug | Angled |
| Material | Plastic |
| Military model | |
| Pin Configuration | P |
| Body Colour | |
| Voltage acc. EN 60309-2 | 500 V (50+60 Hz) black mm |
