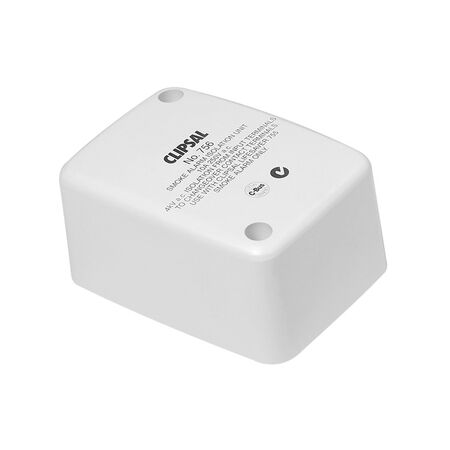

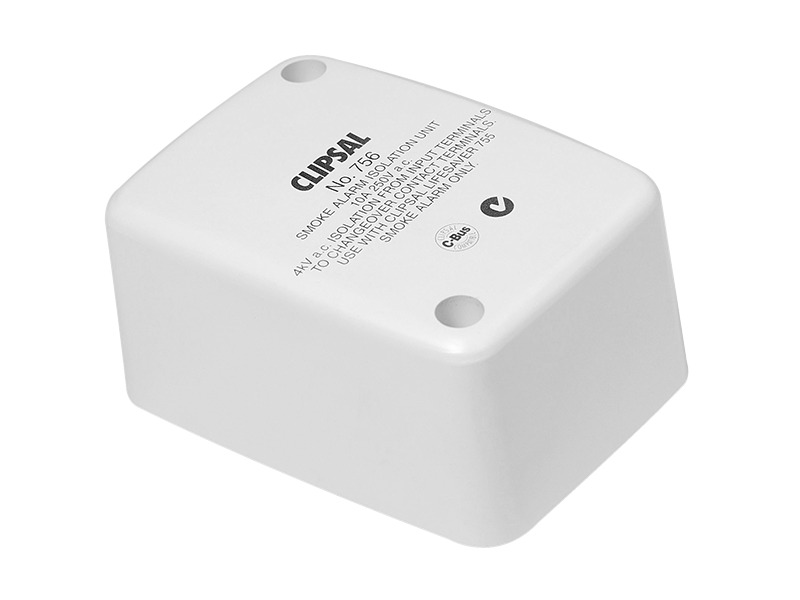

756 Smoke Alarm Isolation Unit
Clipsal Smoke Detectors, Smoke Alarm Isolation Unit compatible with Clipsal Smoke Detectors only.
Key Features
- Changeover Contacts: 1xNormally Open (N.O.), 1xNormally Closed (N.C.)
- Contact Rating: 10 A resistive and inductive, 250 V AC, 50 Hz
- Interconnection Input: 6 V to 10V DC. referenced to Neutral
- Supply Current: Alarm mode - 1mA minimum. Non-alarm mode (standby)
- Maximum number of smoke alarms interconnected to a single 756 Isolation Unit: 40
- Switching Delay: 20 seconds
- Cables Accommodated: 2 x 2.5 mmsq
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Series 756 |
| Measurement principle | |
| Nominal voltage (value) | |
| Frequency | Hz |
| Networkable via radio | |
| Networkable via cable | |
| German approval VdS | |
| Colour | |
| RAL-number (akin) | |
| Temperature range | 0 to 50 deg C |
