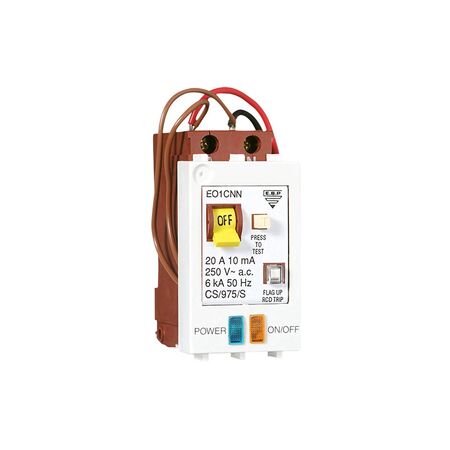

E01CNN20 Combination RCD/MCB Module, 2 Pole, 20A, 10mA
RCD Modules and Covers, 240V AC 20A 10mA RCD / MCB Module.
Key Features
- Overload protection
- Blue line supply indicator and amber load supply indicator
- In-built indicator to Indicate whether an RCD or MCB fault has occurred
- In-built test facility
- Sophisticated filtering to stop nuisance tripping caused by radio frequency interference (RFI)
- Standard finish for flush mount is white electric
- < 40 ms trip time
- Operating tempreture: -10 to 55 deg C
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Medilec, Series E01 |
| Number of poles | 2 |
| Rated voltage | 240 VAC |
| Rated current | 20 A |
| Rated fault current | 10 mA |
| Mounting method | DIN-rail (DRA) |
| Leakage current type | AC |
| Selective protection | |
| Short-circuit breaking capacity (Icw) | kA |
| Rated switching capacity | |
| Frequency | 50 Hz |
| Additional equipment possible | |
| Degree of protection (IP) | |
| Construction size (in accordance with DIN 43880) | 74 Height x 45 Width x 65 Depth mm |
| Width in number of modular spacings | |
| Built-in depth | 65 mm |
| Short-time delayed tripping | Yes |
| Standard | AS/NZS 3190 |
| Colour | |
| Surge current capacity |
