3025-VW

Clipsal Iconic Double Switch Power Point Horizontal Mount, 250V, 10A | Vivid White


$8.50 List price: $15.00
+

Weight: 0.160 kg
In stock

Minimum quantity for "Clipsal Iconic Double Switch Power Point Horizontal Mount, 250V, 10A | Vivid White" is 10.

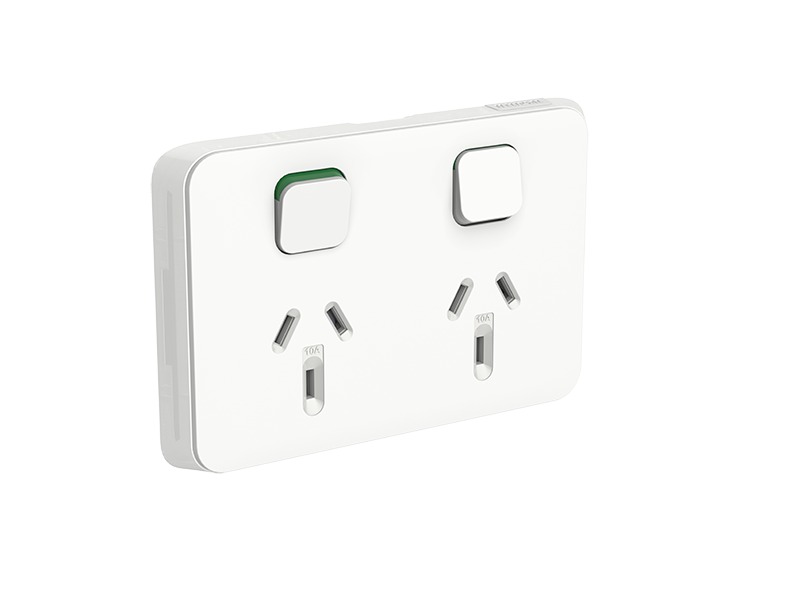

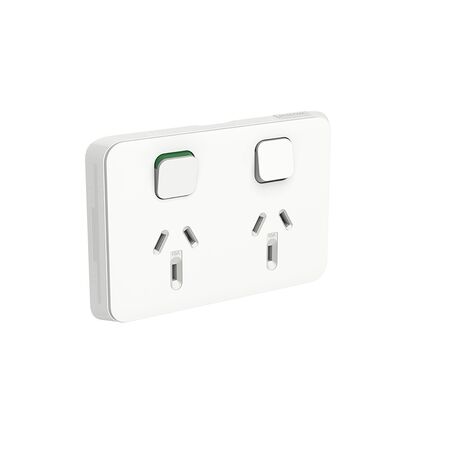

Clipsal Iconic Double Power Point

Brand: Clipsal
Product or Component Type: Switched Socket
Colour: Vivid White (VW)

Technical Specifications

- Configuration: 2 Power Outlets + Earthing
- Outlet Standard: Australian 2P+E with Shutters
- Rated Current: 10A at 250V AC 50Hz
- Electrical Durability: 12,000 Cycles
- Connections: 3 Screw Terminals
- Clamping Capacity: 1 x 2.5 to 4 x 2.5mm² (Rigid/Stranded/Flexible)
- Dimensions: 120mm (H) x 78mm (W) x 27mm (D)
- Mounting Depth: 18mm
- Net Weight: 0.116kg

Key Features

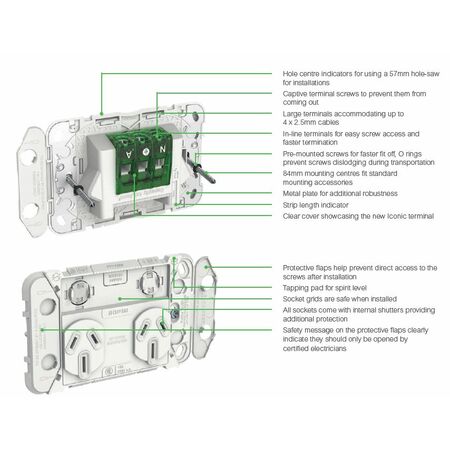

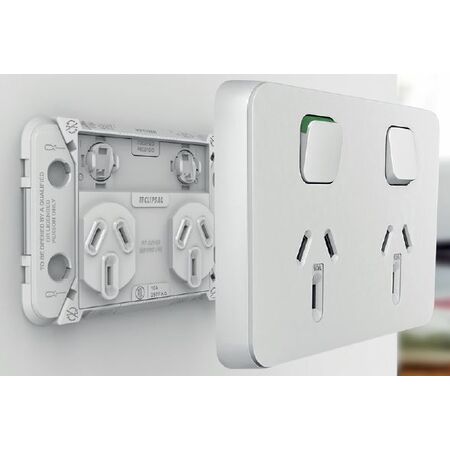

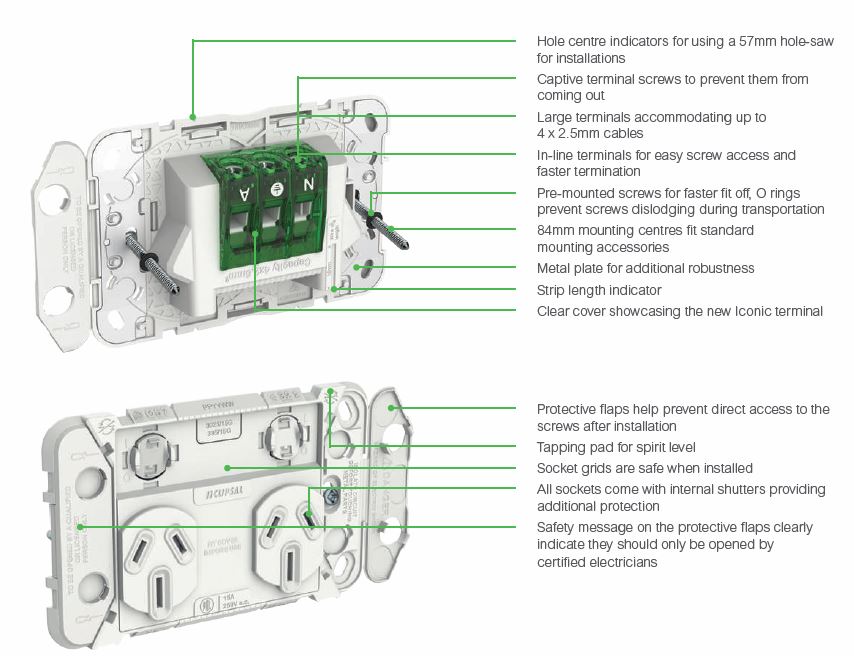

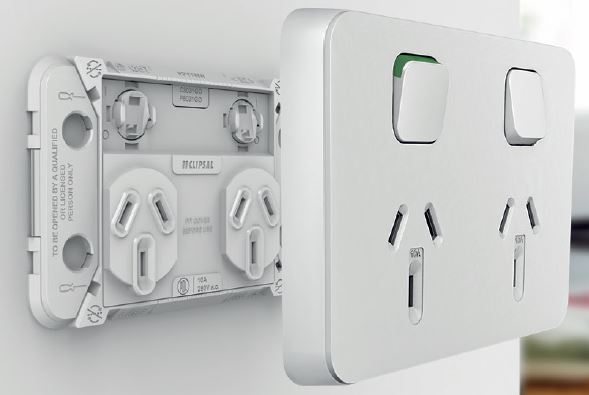

- Innovative protective flaps on Grid Plate
- Prevents screw access after installation
- Allows safe skin changes at any time
- Durable polycarbonate, polypropylene, POM construction

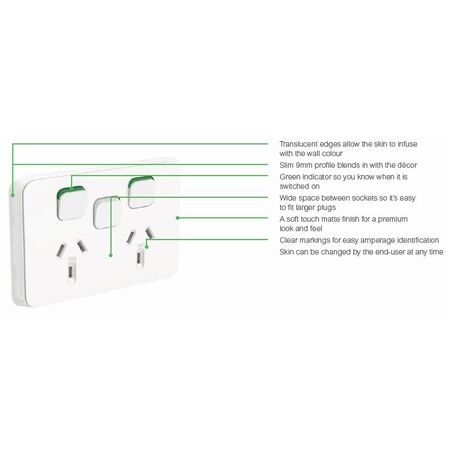

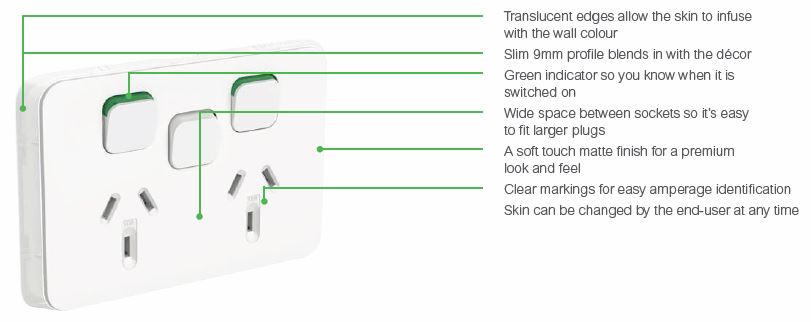

- Smooth, flush-mount design
Professional Installation

- Licensed electrician installation required
- Proper circuit protection and earthing needed
- Secure mounting to wall structure
- Follow all local electrical regulations

Applications

- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring a power point

Compliance

- Complies with AS/NZS 3112
- RCM certified
- RoHS, REACH, and China RoHS compliant
