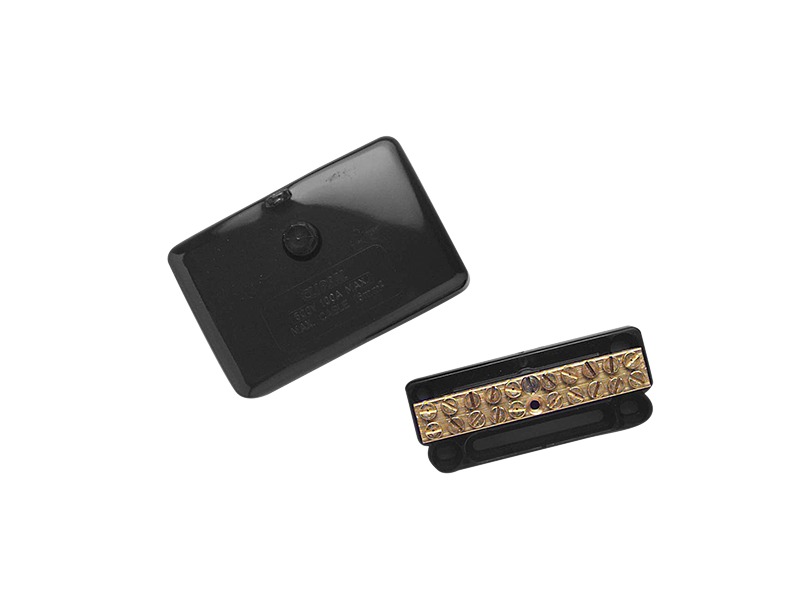

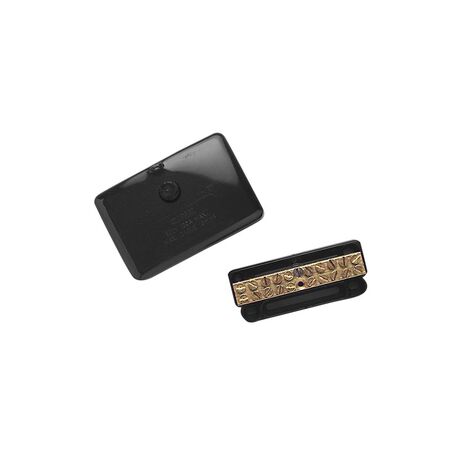

L10 Active Link, 10 Hole, 100A, Amber
Neutral, Active, Meter Links, 10 Hole neutral, active, meter link.
Key Features
- 3 tunnel- 6.3 mm diameter accommodate 1 x 16 sq mm cable
- 7 tunnel- 5.8 mm diameter accommodate 1 x 16 sq mm cable
- Dimensions: 86 x 57 x 40 mme
- Two screws per tunnel
- Amber
- 10 hole
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Blue Point |
| Model | Active link |
| Connectable conductor cross section | 16 sq mm |
| Connectable conductor cross section fine-strand without cable end sleeve | sq mm |
| Connectable conductor cross section fine-strand with cable end sleeve | |
| Connectable conductor cross section solid-core | |
| Rated current In | 100 A |
| Rated voltage | 500 V |
| Total number of poles (without ground contact) | |
| Type of electric connection | Screw connection |
| Width/grid dimension | mm |
| Tackable | |
| Number of poles | |
| Connectable conductor cross section multi-wired |
