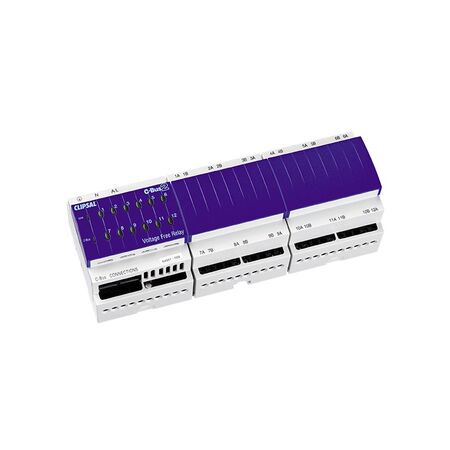

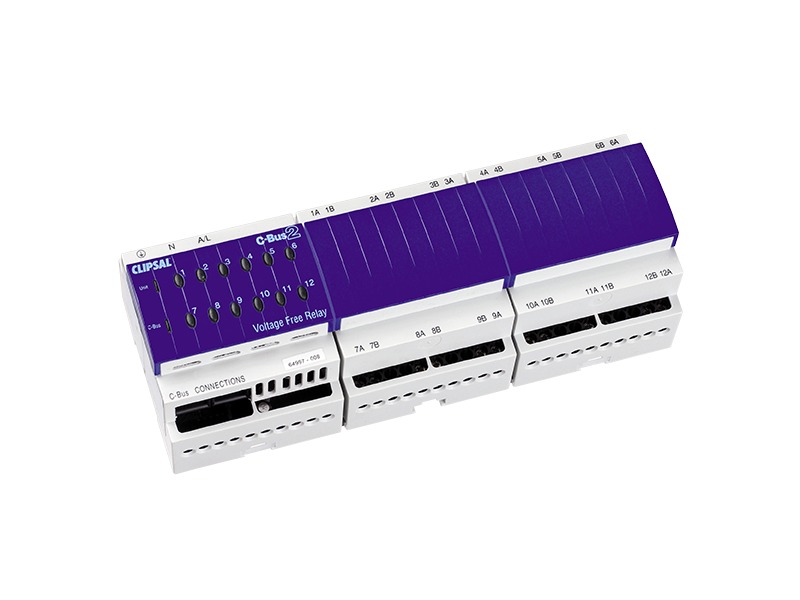

L5512RVFP 12 Channel Relay, Voltage Free, Without Power Supply
C-Bus DIN Rail Mounted 250V AC 10A Relay Units, 12 Channel, 12M modules wide, no C-Bus Power Supply.
Key Features
- 220 - 240 V AC supply voltage
- 47 - 53 Hz and 57 - 63 Hz supply frequency
- Single phase
- Voltage free, magnetically latched contact type
- Greater than 60,000 switching operations
- Compatible with resistive, inductive, incandescent and fluorescent loads up to 10 A
- 2 x 1.5 mmsq or 1 x 2.5 mmsq terminals
- 0 - 45 deg C operating temperature
- 10 - 95% RH, humidity range
- 12 DIN modules
- DIN mounted
- 2 x RJ45 sockets connection
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | C-Bus |
| Type of electric connection | Screw connection |
| With detachable clamps | |
| Rated control supply voltage Us at AC 50HZ | V |
| Rated control supply voltage Us at AC 60HZ | VAC |
| Rated control supply voltage Us at DC | 15 - 36 V |
| Voltage type for actuating | AC/DC |
| Drive, polarization | |
| Drive, switching attitude | |
| Number of contacts as normally closed contact | |
| Number of contacts as normally open contact | |
| Number of contacts as change-over contact | |
| With forced-guided contacts | |
| Type of switch contact | |
| Complete with socket | Yes |
| Degree of protection (IP) | |
| Width | 215 mm |
| Height | 85 mm |
| Depth | 65 mm |
