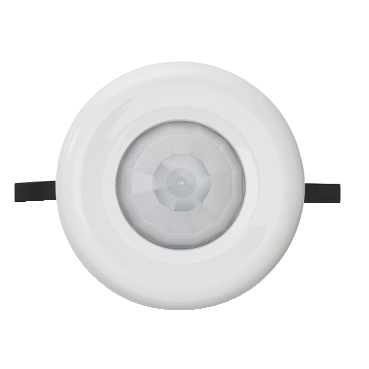

Product Name/Title: Clipsal - Motion Sensor, Motion Infrared Sensor, 10A, 3 Wire, Flush Mount - White Electric
Brand: Clipsal
SKU: 753R-WE
Alternatively Known As: PIR Motion Sensor, Infrared Motion Detector, Automatic Lighting Sensor
Technical Specifications
- Rated operational voltage: 200-265 V AC
- Inrush current: 10 A
- Protection type: creep zone protection
- Function: automatic with manual override
- Mounting height: 2.4 m
- IP Rating: IP20
- Ambient air temperature for operation: 0-50 °C
- Power range: <= 2300 W
- Horizontal detection angle: 0-360 °
- Duty cycle: 20 min
- Dimensions (H x L x W): 165mm x 125mm x 85mm
- Weight: 0.2 kg
Key Features
- PIR sensor type for automatic lighting control
- Flush mount design for seamless integration
- Movement detection area of up to 10 meters
- Time delay range of 0 to 5 seconds for switch-on
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Residential: Staircase monitoring and lighting control
- Commercial: Hallways, offices, and public spaces
Standards & Compliance
- Complies with Australian electrical standards for safety.
Environmental Benefits
- Energy-efficient operation reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Motion Infrared Sensor is available now for immediate purchase. Ideal for enhancing safety and convenience in various lighting applications.
