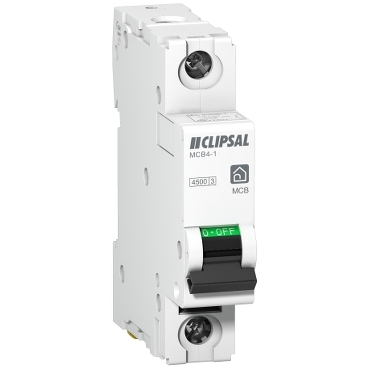

Product Name/Title: Clipsal Resi MAX, Miniature circuit breaker, 1P 40 A C curve 4500 A 240 V
Brand: Clipsal
SKU: MCB4-140
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 240 V
- Number of poles: 1
- Connections: Screw terminal for 1 cable(s) 0.5-35 mm² rigid, 0.5-25 mm² flexible
- Wire stripping length: 13 mm
- Rated impulse withstand voltage: 4 kV
- Rated insulation voltage: 440 V
- Tightening torque: 3.5 N.m
- Pollution degree: 3
- Tropicalisation: 2 conforming to IEC 60068-1
- Dimensions (H x L x W): 81mm x 78.5mm x 18mm
- Weight: 0.115 kg
Key Features
- 1 pole design with a rated current of 40 A.
- Breaking capacity of 4500 A at 240 V.
- Mechanical durability of 20,000 cycles.
- Electrical durability of 10,000 cycles.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Small offices and retail spaces
- General: Circuit protection in various electrical installations
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Resi MAX Miniature Circuit Breaker is available now for immediate purchase. Ideal for residential and commercial electrical installations.
