28904

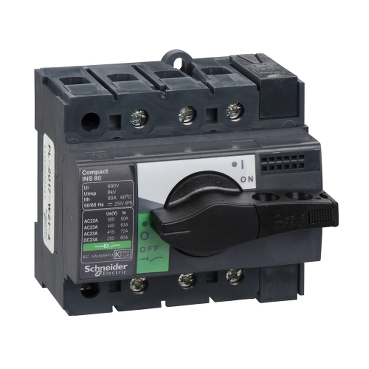

ComPact, Switch disconnector, Compact INS80 , 80 A, standard version with black rotary handle, 3 poles


$344.70 List price: $517.10
+

Weight: 0.500 kg

Product Name/Title: ComPact, Switch disconnector, Compact INS80 , 80 A, standard version with black rotary handle, 3 poles

Brand: Clipsal

SKU: 28904

Alternatively Known As: Switch Disconnector, Rotary Switch, Electrical Disconnect Switch

Technical Specifications
  • Rated operational current: 80 A AC 50/60 Hz
  • Rated operational voltage: 500 V AC, 125 V DC
  • Control type: rotary handle
  • Mounting mode: fixed, DIN rail
  • Rated insulation voltage: 690 V AC
  • Rated impulse withstand voltage: 8 kV
  • Rated short-circuit making capacity: 15 kA
  • Pollution degree: 3
  • Cable cross section: 1.5...50 mm²
  • Dimensions (H x L x W): 85mm x 62.5mm x 90mm
  • Weight: 0.5 kg
Key Features
  • 80 A rated operational current with a black rotary handle.
  • 3 poles for versatile applications.
  • Mechanical durability of 20,000 cycles.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment control
  • Commercial: Electrical distribution systems
  • General: Any application requiring reliable switch disconnection
Standards & Compliance
  • Complies with IEC 60947-3 and IEC 60947-1 standards.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal ComPact INS80 Switch Disconnector is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

28904 (28904, 255 Kb) [Download]
