KF83A

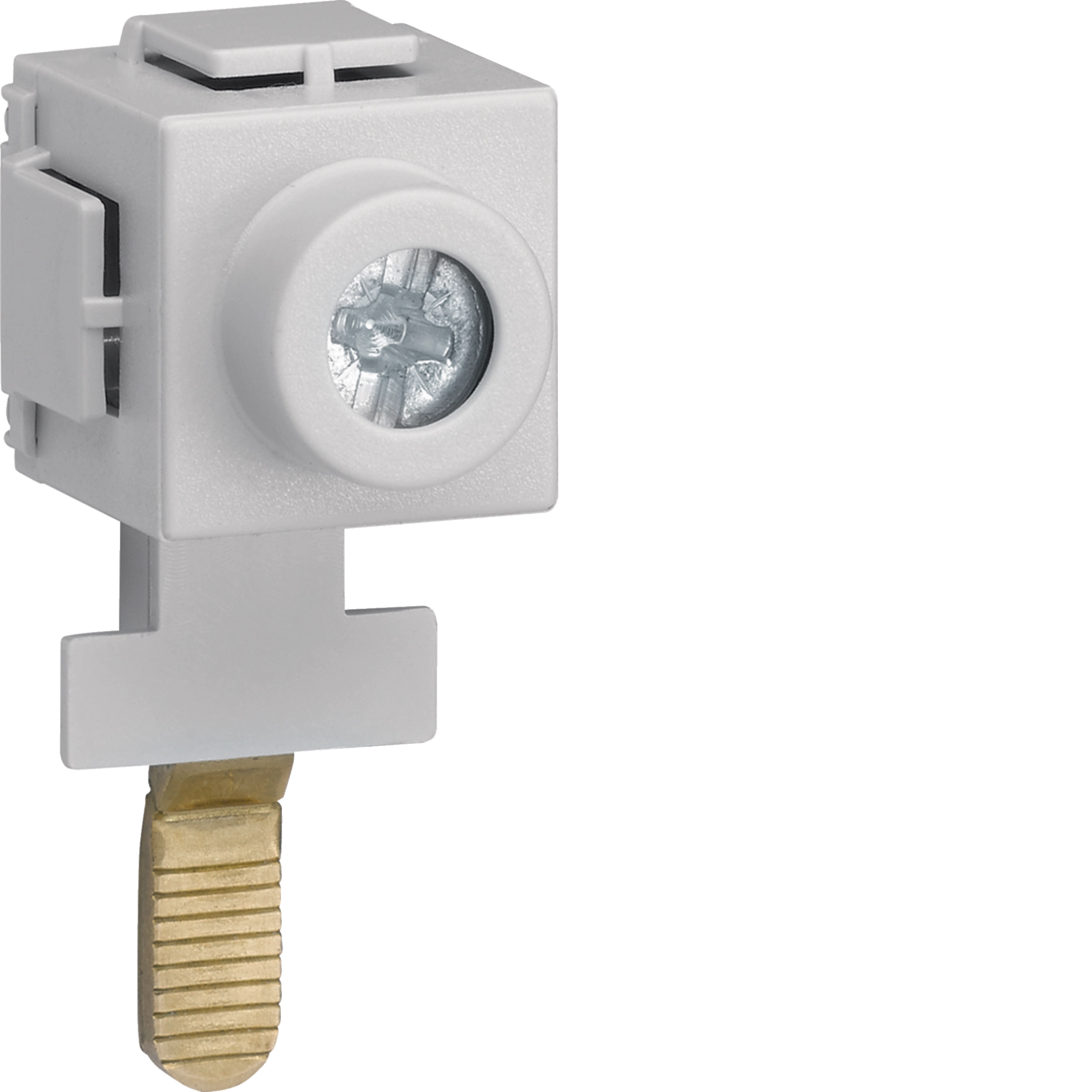

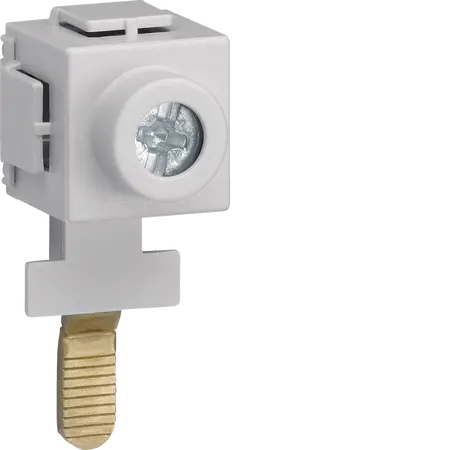

Connection terminal 1P prong 1x35mm²


$14.50 List price: $18.50
+

Weight: 0.500 kg

Product Name/Title: Connection terminal 1P prong 1x35mm²

Brand: Hager

SKU: KF83A

Alternatively Known As: Hager Busbar Connector, Hager Screw Terminal, Hager Electrical Connector

Technical Specifications
  • Rated current: 100 A
  • Type of connection: Screw terminal
  • Cross-section flexible conductor: 25 mm²
  • Cross-section rigid conductor: 35 mm²
  • Dimensions (H x L x W): 30mm x 100mm x 50mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 100 A for robust electrical performance.
  • Screw terminal connectivity for secure connections.
  • Compatible with flexible conductors up to 25 mm² and rigid conductors up to 35 mm².
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical installations in residential and commercial buildings
  • Industrial applications requiring reliable connectivity
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Connection Terminal 1P Prong 1x35mm² is available now for immediate purchase. Ideal for electrical installations in various settings.
