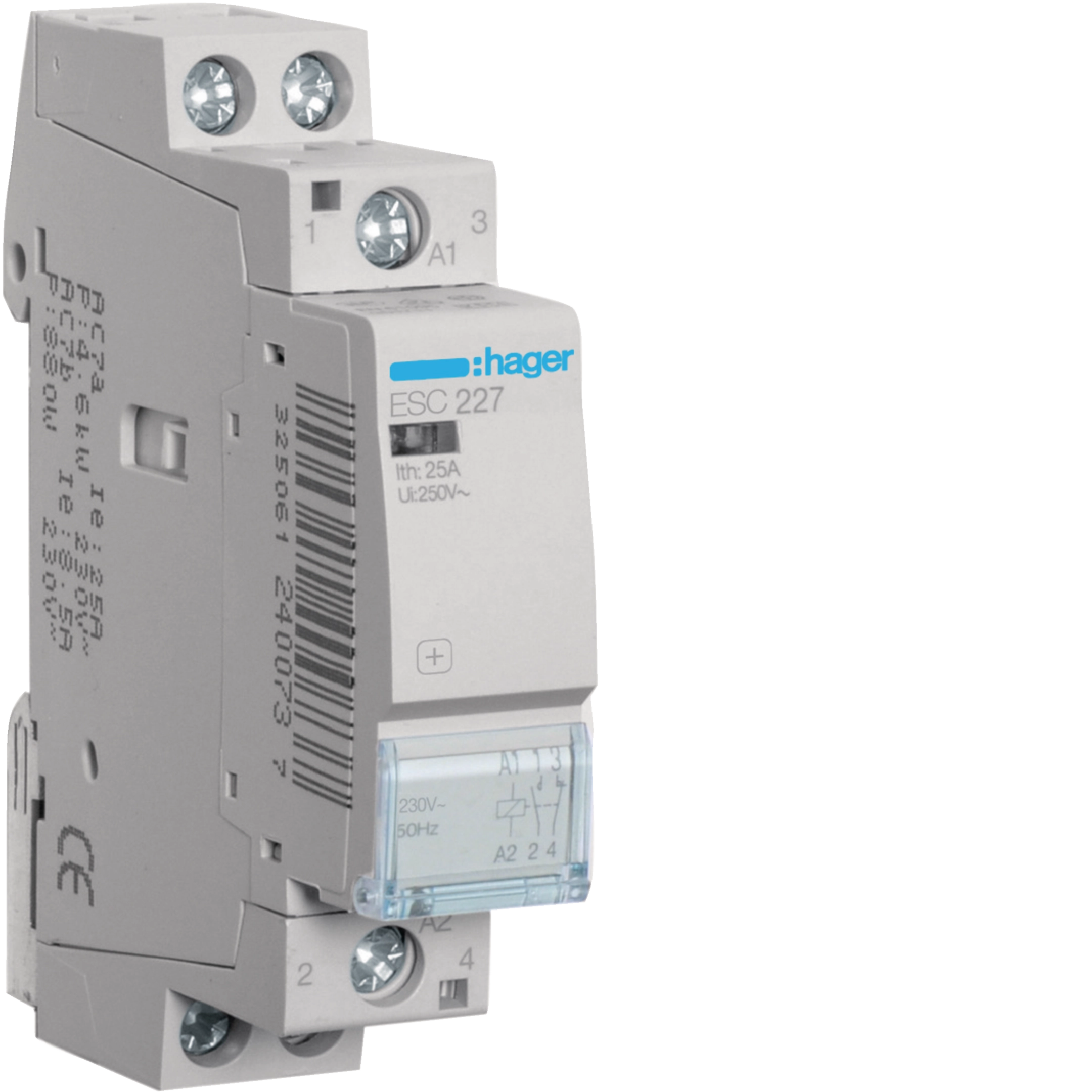

Product Name/Title: Contactor 25A, 1NO+1NC, 230V~50Hz
Brand: Hager
SKU: ESC227
Alternatively Known As: ESC227 Contactor 25A
Technical Specifications
- Connection Type of contacts: 1NC+1NO
- Number of contacts: 2
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Number of modules: 1
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 250 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 2,50 W
- Inrush power absorbed: 10,70 VA
- Nominal tightening torque: 1,20 - 1,20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 17.85mm
- Weight: 0.15 kg
Key Features
- Robust contactor with 25A capacity
- Dual contacts: 1 Normally Open and 1 Normally Closed
- Wide temperature operating range
- High mechanical and electrical endurance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance.
Applications
- Industrial control systems
- Commercial electrical installations
- Residential automation systems
Standards & Compliance
- Complies with relevant AS/NZS standards for electrical equipment
Environmental Benefits
- Energy-efficient design minimizing power loss
- Durable construction reducing need for replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager ESC227 Contactor is available now for immediate purchase. Ideal for industrial and commercial applications requiring efficient electrical switching.
