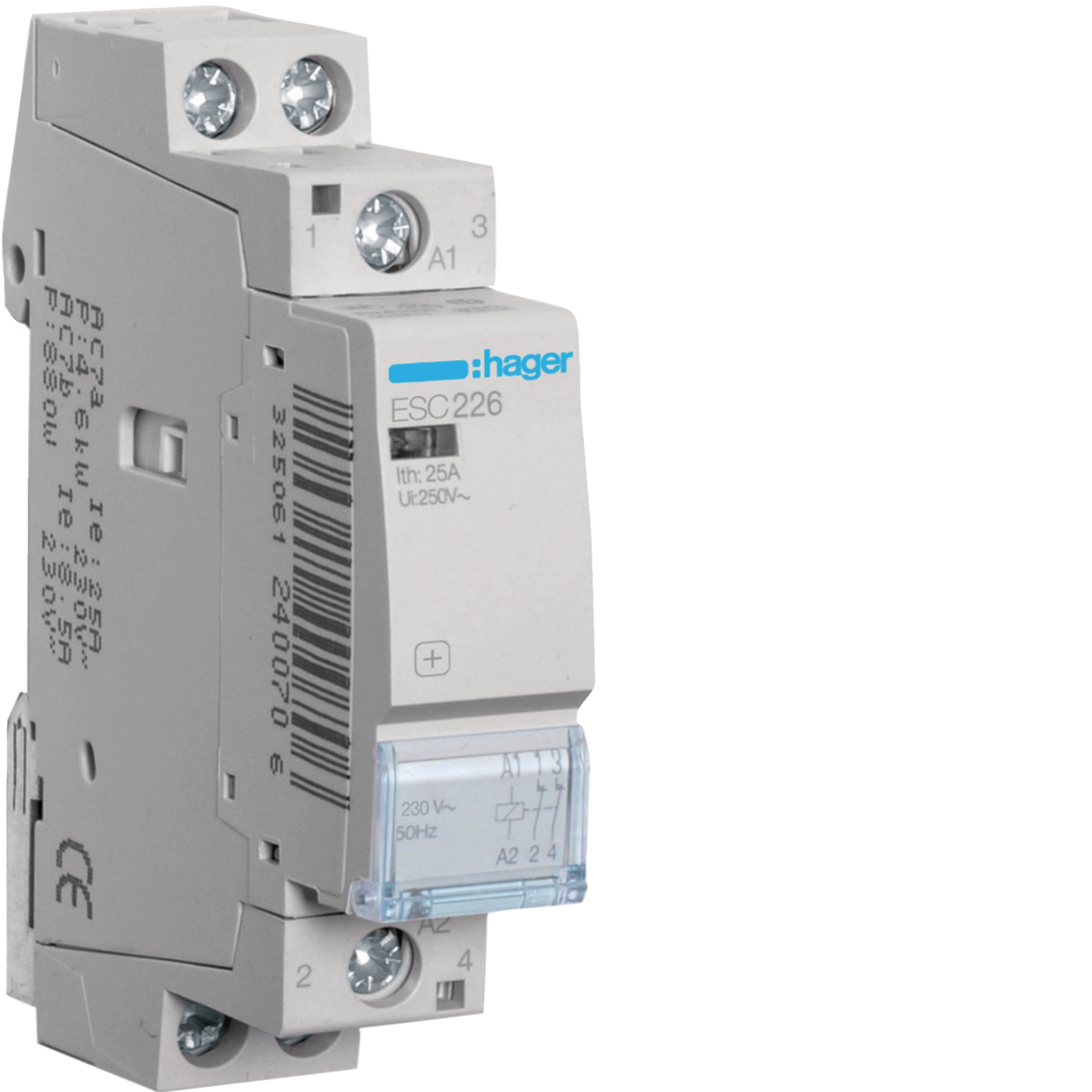

Product Name/Title: Contactor 25A, 2NC, 230V~50Hz
Brand: Hager
SKU: ESC226
Alternatively Known As: ESC226 Contactor
Technical Specifications
- 2NC type of contacts
- Rated current: 25A
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 250 V
- Command voltage AC: 230 - 230 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 3 W
- Inrush power absorbed: 10.70 VA
- Nominal tightening torque: 1.20 - 1.20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 17.85mm
- Weight: 0.3 kg
Key Features
- 25A rated current
- 2NC contacts
- 230V AC command voltage
- Compact design with 1 module width
Professional Installation Requirements
- Professional installation by a certified electrician is recommended to ensure safety and compliance.
Applications
- Residential lighting control
- Industrial motor control
- Automation systems
Standards & Compliance
- Meets all relevant AS/NZS electrical standards.
Environmental Benefits
- Durable design reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Contactor 25A, 2NC, 230V~50Hz is available now for immediate purchase. Ideal for residential and industrial automation systems, providing reliable control and switching.
