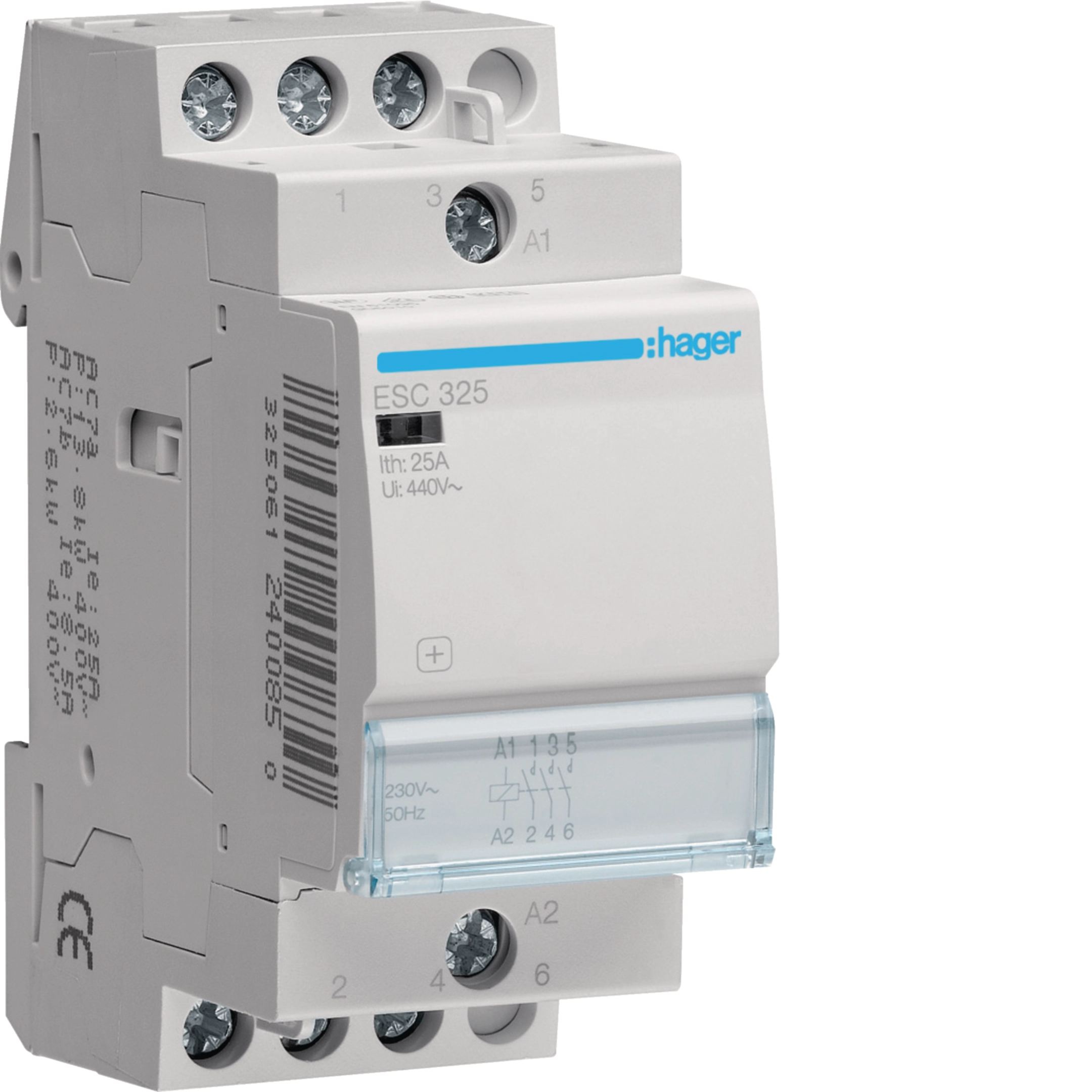

Product Name/Title: Contactor 25A, 3NO, 230V~50Hz
Brand: Hager
SKU: ESC325
Alternatively Known As: Contactors 25A
Technical Specifications
- Type of contacts: 3NO
- Number of contacts: 3
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Number of modules: 2
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 6 W
- Inrush power absorbed: 21 VA
- Number of NO contacts: 3
- Number of NC contacts: 0
- With switch for manual switch: No
- Nominal tightening torque: 1.20 - 1.20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 35.75mm
- Weight: 0.5 kg
Key Features
- Rated current of 25A
- 230V command voltage
- 3 normally open contacts
- Compact design with 2 modules
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Industrial automation
- Residential electrical systems
- Commercial electrical control systems
Standards & Compliance
- Complies with AS/NZS 61095:2003 for Electrical Accessories.
Environmental Benefits
- Energy-efficient design reduces power loss.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Contactor 25A, 3NO, 230V~50Hz is available now for immediate purchase. Ideal for residential and commercial electrical control applications.
