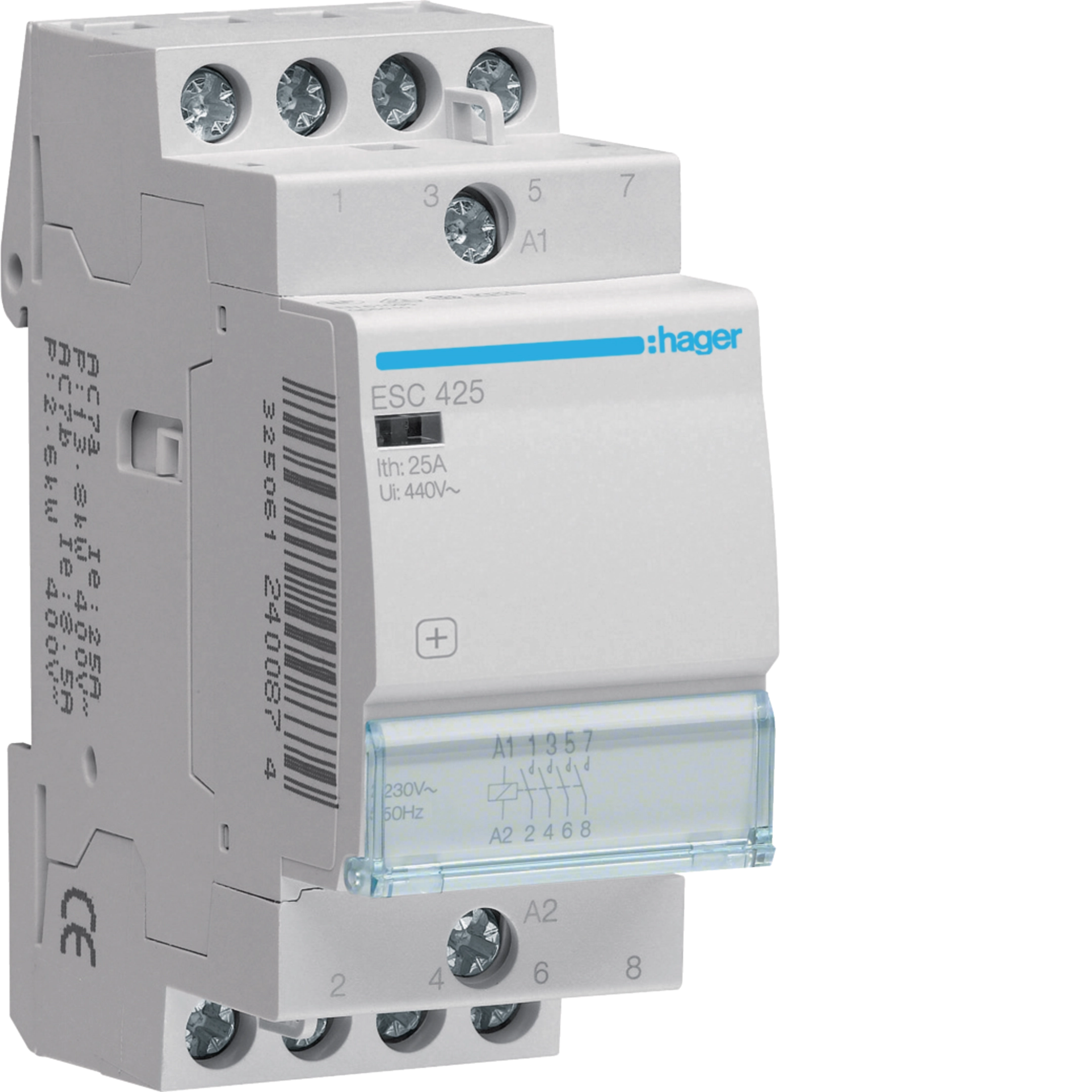

Product Name/Title: Contactor 25A, 4NO, 230V~50Hz
Brand: Hager
SKU: ESC425
Alternatively Known As: 4 Pole Contactor
Technical Specifications
- Type of contacts: 4NO
- Number of contacts: 4
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Number of modules: 2
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 7.50 W
- Inrush power absorbed: 21 VA
- Nominal tightening torque: 1.20 - 1.20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 35.75mm
- Weight: 0.75 kg
Key Features
- Rated Current: 25A
- 4 Normally Open (NO) Contacts
- Rated Impulse Withstand Voltage: 4000V
- Rated Insulation Voltage: 440V
- Operating Temperature: -10 to 50°C
Professional Installation Requirements
- Installation by a certified electrician is recommended to ensure safety and compliance with local regulations.
Applications
- Residential: Home automation systems, lighting control
- Commercial: HVAC, industrial automation, and power distribution
Standards & Compliance
- Meets all relevant Australian safety and performance standards
Environmental Benefits
- Energy-efficient with low power loss and inrush power
- Designed to operate in a wide temperature range
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Hager Contactor is available now for immediate purchase, ideal for both residential and commercial electrical systems.
