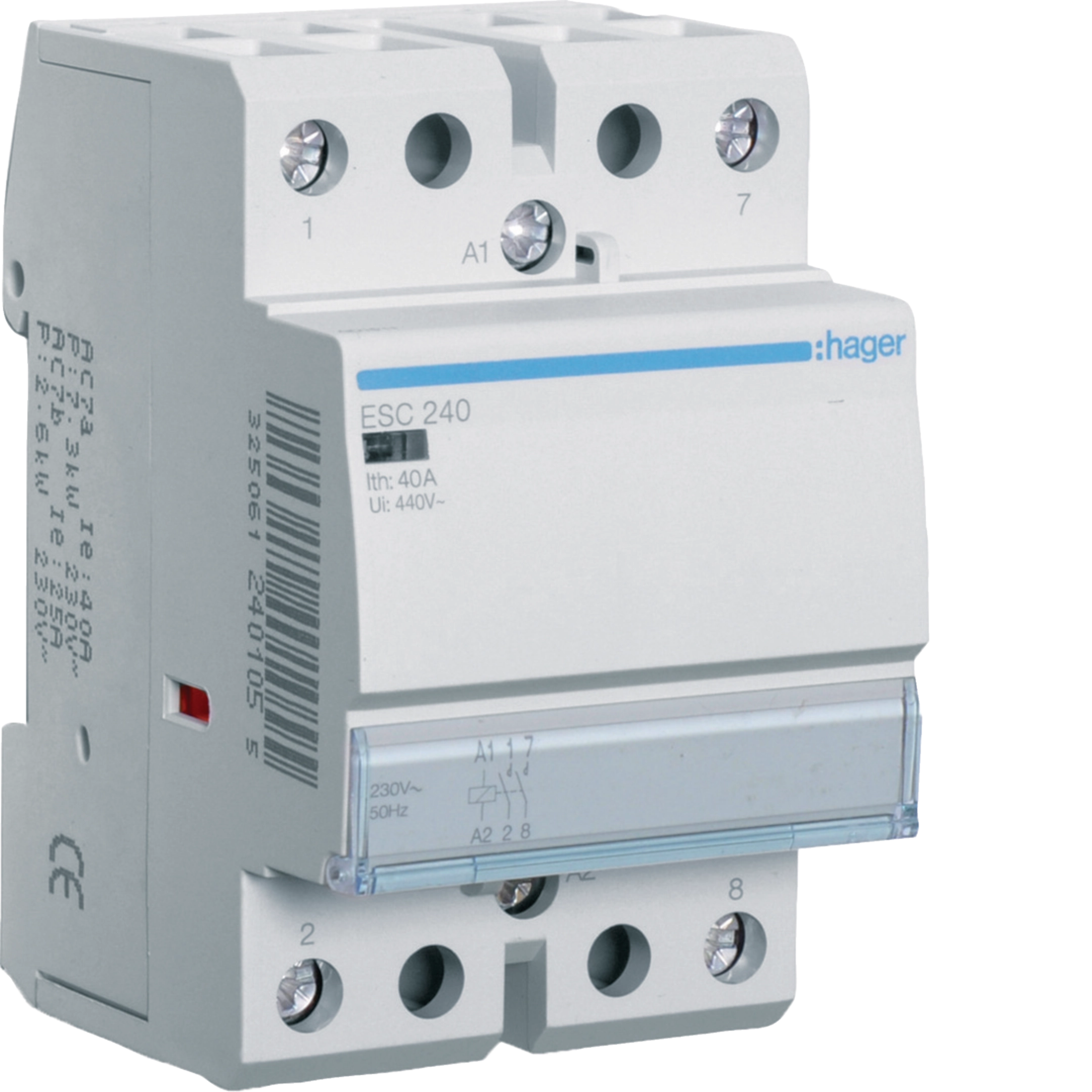

Product Name/Title: Contactor 40A, 2NO, 230V~50Hz
Brand: Hager
SKU: ESC240
Alternatively Known As: 40A 2NO DIN Rail Contactor
Technical Specifications
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4000 V
- Operating temperature: -10 - 50°C
- Storage/transport temperature: -40 - 80°C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 7.90 W
- Inrush power absorbed: 62.50 VA
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: 0 kg
Key Features
- Rated current of 40A
- Two normally open (2NO) contact configuration
- Designed for 230V AC and 50Hz frequency
- Robust construction with high mechanical endurance
Professional Installation Requirements
- Recommended for professional installation by a licensed electrician for optimal performance and safety.
Applications
- Residential and commercial electrical installations
- Lighting and HVAC systems for automated control
- Industrial machinery requiring reliable switching
Standards & Compliance
- Complies with AS/NZS standards for safety and performance
Environmental Benefits
- Extended electrical lifespan reduces need for replacements
- Complies with environmental regulations for reduced ecological impact
Warranty Information
Manufactured with quality assurance, details available upon request.
Available Now
Available for immediate purchase, ideal for various applications in residential, commercial, and industrial settings.
