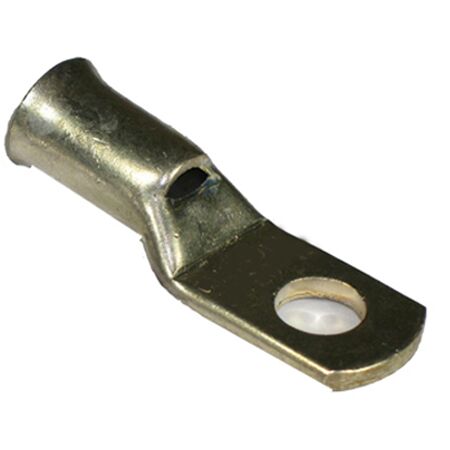

Non-Insulated Copper Lugs
FEATURES
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Electro tinned finish for high conductivity
- Includes inspection hole
- Conform to IS 191 (part V GR.ETP) specifications
Part No | Description | Conductor Size | Stud Size (mm) | |
ALCL1.5M4/100 | Copper Lug | 1.5 | 4.0 | |
ALCL1.5M5/100 | Copper Lug | 1.5 | 5.0 | |
ALCL1.5M6/100 | Copper Lug | 1.5 | 6.0 | |
ALCL2.5M4/100 | Copper Lug | 2.5 | 4.0 | |
ALCL2.5M5/100 | Copper Lug | 2.5 | 5.0 | |
ALCL2.5M6/100 | Copper Lug | 2.5 | 6.0 | |
ALCL2.5M8/100 | Copper Lug | 2.5 | 8.0 | |
ALCL4M5/100 | Copper Lug | 4.0 | 5.0 | |
ALCL4M6/100 | Copper Lug | 4.0 | 6.0 | |
ALCL4M8/100 | Copper Lug | 4.0 | 8.0 | |
ALCL6M6/50 | Copper Lug | 6.0 | 6.0 | |
ALCL6M8/50 | Copper Lug | 6.0 | 8.0 | |
ALCL6M10/50 | Copper Lug | 6.0 | 10.0 | |
ALCL10M6/25 | Copper Lug | 10.0 | 6.0 | |
ALCL10M8/25 | Copper Lug | 10.0 | 8.0 | |
ALCL10M10/25 | Copper Lug | 10.0 | 10.0 | |
ALCL10M12/25 | Copper Lug | 10.0 | 12.0 | |
ALCL16M6/25 | Copper Lug | 16.0 | 6.0 | |
ALCL16M8/25 | Copper Lug | 16.0 | 8.0 | |
ALCL16M10/25 | Copper Lug | 16.0 | 10.0 | |
ALCL16M12/25 | Copper Lug | 16.0 | 12.0 | |
ALCL25M6/25 | Copper Lug | 25.0 | 6.0 | |
ALCL25M8/25 | Copper Lug | 25.0 | 8.0 | |
ALCL25M10/25 | Copper Lug | 25.0 | 10.0 | |
ALCL25M12/25 | Copper Lug | 25.0 | 12.0 | |
ALCL35M6/25 | Copper Lug | 35.0 | 6.0 | |
ALCL35M8/25 | Copper Lug | 35.0 | 8.0 | |
ALCL35M10/25 | Copper Lug | 35.0 | 10.0 | |
ALCL35M12/25 | Copper Lug | 35.0 | 12.0 | |
ALCL35MB/25 | Copper Lug | 35.0 | - | |
ALCL50M8/10 | Copper Lug | 50.0 | 8.0 | |
ALCL50M10/10 | Copper Lug | 50.0 | 10.0 | |
ALCL50M12/10 | Copper Lug | 50.0 | 12.0 | |
ALCL70M8/10 | Copper Lug | 70.0 | 8.0 | |
ALCL70M10/10 | Copper Lug | 70.0 | 10.0 | |
ALCL70M12/10 | Copper Lug | 70.0 | 12.0 | |
ALCL70M16/10 | Copper Lug | 70.0 | 16.0 | |
ALCL95M8/10 | Copper Lug | 95.0 | 8.0 | |
ALCL95M10/10 | Copper Lug | 95.0 | 10.0 | |
ALCL95M12/10 | Copper Lug | 95.0 | 12.0 | |
ALCL95M16/10 | Copper Lug | 95.0 | 16.0 | |
ALCL120M10/10 | Copper Lug | 120.0 | 10.0 | |
ALCL120M12/10 | Copper Lug | 120.0 | 12.0 | |
ALCL120M16/10 | Copper Lug | 120.0 | 16.0 | |
ALCL150M10/10 | Copper Lug | 150.0 | 10.0 | |
ALCL150M12/10 | Copper Lug | 150.0 | 12.0 | |
ALCL150M16/10 | Copper Lug | 150.0 | 16.0 | |
ALCL185M10/6 | Copper Lug | 185.0 | 10.0 | |
ALCL185M12/6 | Copper Lug | 185.0 | 12.0 | |
ALCL185M16/6 | Copper Lug | 185.0 | 16.0 | |
ALCL240M8/6 | Copper Lug | 240.0 | 8.0 | |
ALCL240M12/6 | Copper Lug | 240.0 | 12.0 | |
ALCL240M16/6 | Copper Lug | 240.0 | 16.0 | |
ALCL240M20/6 | Copper Lug | 240.0 | 20.0 | |
ALCL240MB/6 | Copper Lug | 240.0 | - | |
ALCL300MB/3 | Copper Lug | 300.0 | - | |
ALCL400MB/3 | Copper Lug | 400.0 | - | |
ALCL500MB/3 | Copper Lug | 500.0 | - | |
ALCL630MB/3 | Copper Lug | 630.0 | - |
