ALCLK16/25

Copper Links 16mm


$34.90 List price: $84.00
+

Weight: 0.050 kg

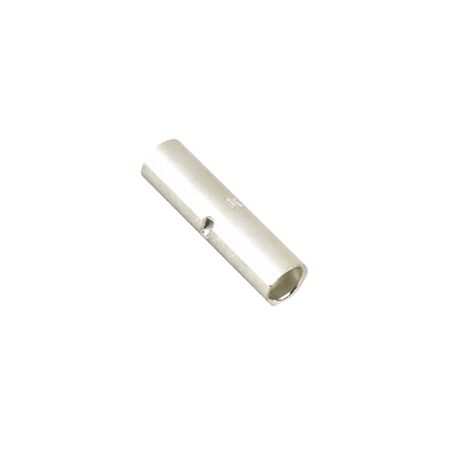

Non-Insulated Copper Links

FEATURES

Non-insulated electro grade copper crimp links suitable for stranded to fine-stranded copper cable.

Long barrel

Electro tinned finish for high conductivity

Includes entrance chamfer and centre dimpling

Conform to IS 191 (part V GR.ETP) specifications

Part No

Description

Conductor Size
(mm²)

Stranding
Metric



ALCLK1.5/100

Copper Link

1.5

1/0.80



ALCLK2.5/100

Copper Link

2.5

7/0.67



ALCLK4/100

Copper Link

4.0

7/0.85



ALCLK6/50

Copper Link

6.0

7/1.04



ALCLK10/50

Copper Link

10.0

7/1.35



ALCLK16/25

Copper Link

16.0

7/1.70



ALCLK25/25

Copper Link

25.0

19/1.35



ALCLK35/25

Copper Link

35.0

19/1.53



ALCLK50/25

Copper Link

50.0

19/1.78



ALCLK70/10

Copper Link

70.0

19/2.14



ALCLK95/10

Copper Link

95.0

37/1.78



ALCLK120/10

Copper Link

120.0

37/2.03



ALCLK150/6

Copper Link

150.0

37/2.25



ALCLK185/6

Copper Link

185.0

37/2.52



ALCLK240/6

Copper Link

240.0

61/2.25



ALCLK300/3

Copper Link

300.0

61/2.52



ALCLK400/3

Copper Link

400.0

61/2.85



ALCLK500/3

Copper Link

500.0

61/3.20



ALCLK630/3

Copper Link

630.0

127/2.52
