Trade Discount 25%
FB1001120

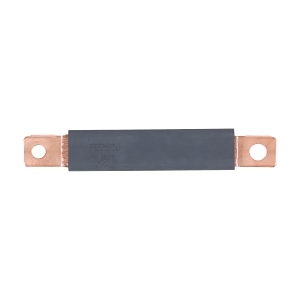

CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 1120mm Black and Dark Grey


$223.40 List price: $296.70
+

Weight: 1.500 kg

Product Name/Title: CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 1120mm Black and Dark Grey

Brand: NHP

SKU: FB1001120

Alternatively Known As: Flexible Copper Busbar, CuFlex Busbar, Copper Busbar 100mm2

Technical Specifications
  • Rated Current: 420 A
  • Nominal Voltage: 1000 V
  • Rated Short Time Withstand Current: 64 A
  • Rated Insulation Voltage: 1000 V
  • Max Operating Temperature: 105 °C
  • Wire Conductor Size: 100 mm
  • Dimensions (H x L x W): 5mm x 1120mm x 20mm
  • Weight: 1.5 kg
Key Features
  • Flexible design allows for easy installation in tight spaces.
  • Fire resistant properties according to UL94 V0.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical distribution in commercial and industrial settings
  • Power supply connections in switchboards and control panels
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 1120mm is available now for immediate purchase. Ideal for electrical distribution in commercial and industrial settings.
