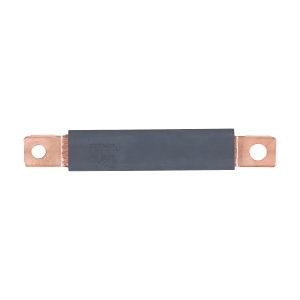

Product Name/Title: CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 224mm Black and Dark Grey
Brand: NHP
SKU: FB100224
Alternatively Known As: Flexible Copper Busbar, CuFlex Busbar, Copper Busbar 100mm2
- Rated Current: 420 A
- Nominal Voltage: 1000 V
- Rated Short Time Withstand Current: 64 A
- Rated Insulation Voltage: 1000 V
- Max Operating Temperature: 105 °C
- Wire Conductor Size: 100 mm
- Dimensions (H x L x W): 5mm x 224mm x 20mm
- Weight: 0.5 kg
- Flexible design allows for easy installation in tight spaces.
- Fire resistant properties according to UL94 V0.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Electrical distribution in residential and commercial buildings
- Industrial applications requiring flexible busbar solutions
- Complies with AS/NZS 3000 for electrical installation standards.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The CUBIC CuFlex Flexible Copper Busbar is available now for immediate purchase. Ideal for electrical distribution in various settings.
