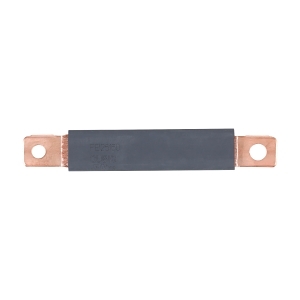

Product Name/Title: CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 672mm Black and Dark Grey
Brand: NHP
SKU: FB100672
Alternatively Known As: Flexible Copper Busbar, CuFlex Busbar, Copper Busbar 100mm2
- Rated Current: 420 A
- Nominal Voltage: 1000 V
- Rated Short Time Withstand Current: 64 A
- Rated Insulation Voltage: 1000 V
- Max Operating Temperature: 105 °C
- Wire Conductor Size: 100 mm
- Dimensions (H x L x W): 5mm x 672mm x 20mm
- Weight: 1.5 kg
- Flexible design allows for easy installation in tight spaces.
- Fire resistant properties according to UL94 V0.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution systems
- Commercial: Electrical installations in buildings
- General: Any application requiring flexible busbar solutions
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The CUBIC CuFlex Flexible Copper Busbar 100mm2 Length 672mm is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
