FB25160

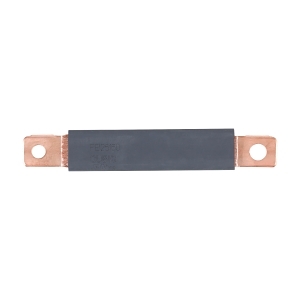

CUBIC CuFlex Flexible Copper Busbar 25mm2 Length 160mm Black and Dark Grey


$14.10 List price: $18.70
+

Weight: 0.500 kg

Product Name/Title: CUBIC CuFlex Flexible Copper Busbar 25mm2 Length 160mm Black and Dark Grey

Brand: NHP

SKU: FB25160

Alternatively Known As: Flexible Copper Busbar, CuFlex Busbar, Copper Busbar 25mm2

Technical Specifications
  • Rated Current: 125 A
  • Rated Current (Busbar to Busbar, ΔT 30K): 145-215 A
  • Rated Current (Busbar to Component, ΔT 40K): 91-107 A
  • Nominal Voltage: 1000 V
  • Rated Short Time Withstand Current (LCC): 24 A
  • Rated Insulation Voltage (Ui): 1000 V
  • Max Operating Temperature: 105 °C
  • Wire Conductor Size: 25 mm
  • Dimensions (H x L x W): 1.5mm x 160mm x 20mm
  • Weight: 0.5 kg
Key Features
  • Flexible design allows for easy installation in tight spaces.
  • Fire resistant properties according to UL94 V0.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical installations in residential and commercial buildings
  • Power distribution systems
  • Industrial applications requiring flexible busbar solutions
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installations.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CUBIC CuFlex Flexible Copper Busbar 25mm2 Length 160mm is available now for immediate purchase. Ideal for electrical installations and power distribution systems.
