FB50352

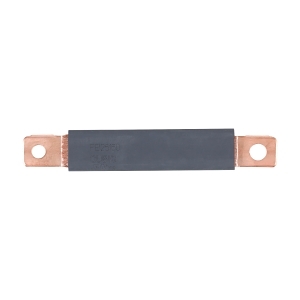

CUBIC CuFlex Flexible Copper Busbar 50mm2 Length 352mm Black and Dark Grey


$42.30 List price: $56.10
+

Weight: 1.000 kg

Product Name/Title: CUBIC CuFlex Flexible Copper Busbar 50mm2 Length 352mm Black and Dark Grey

Brand: NHP

SKU: FB50352

Alternatively Known As: Flexible Copper Busbar, CuFlex Busbar, Copper Busbar 50mm2

Technical Specifications
  • Rated Current: 295 A
  • Nominal Voltage: 1000 V
  • Rated Short Time Withstand Current: 64 A
  • Rated Insulation Voltage: 1000 V
  • Max Operating Temperature: 105 °C
  • Wire Conductor Size: 50 mm
  • Dimensions (H x L x W): 2.5mm x 352mm x 20mm
  • Weight: 1.0 kg
Key Features
  • Flexible design allows for easy installation in tight spaces.
  • Rated for high current applications up to 550 A.
  • Fire resistant properties according to UL94 V0.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical distribution in commercial and industrial settings
  • Power management systems
  • Busway systems
Standards & Compliance
  • Complies with relevant Australian electrical standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CUBIC CuFlex Flexible Copper Busbar 50mm2 Length 352mm is available now for immediate purchase. Ideal for electrical distribution in commercial and industrial settings.
