SCHNAP Logo

Making Trade Life Easy!
Trade Discount 22%
JPE4224M16DS

DB, elite,42/24P, 160A MCCB-DIN-SS, 1600x600x250mm


$5,054.70 List price: $6,463.40
+

Weight: 50.000 kg

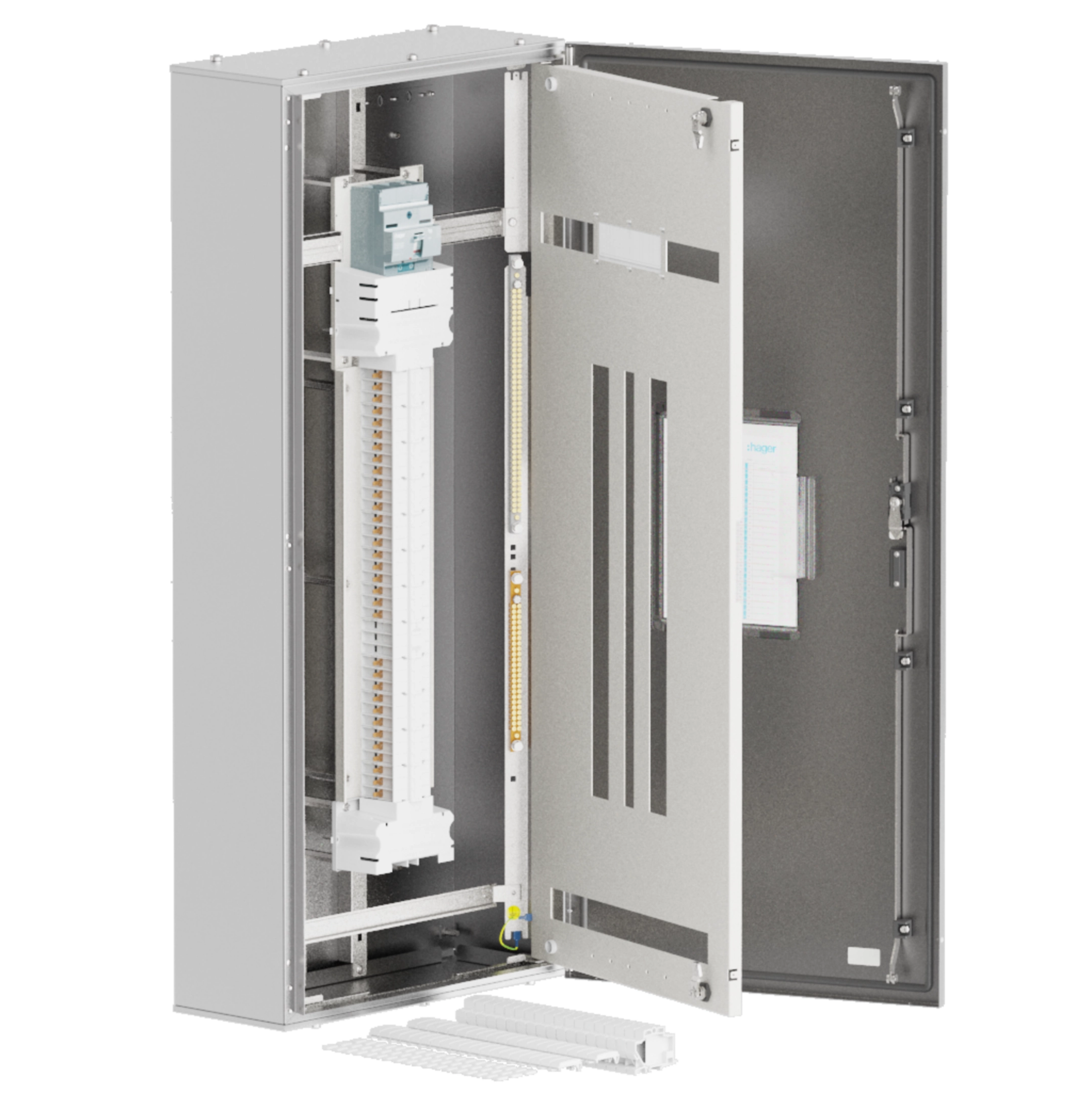

Product Name/Title: DB, elite,42/24P, 160A MCCB-DIN-SS, 1600x600x250mm

Brand: Hager

SKU: JPE4224M16DS

Alternatively Known As: Hager 160A MCCB, Hager Panelboard, Hager Electrical Enclosure

Technical Specifications
  • Number of accessible phases: 66
  • Number of modules: 40
  • Mounting type: Surface mounting
  • Isolation class: I
  • Impact resistance: IK05
  • Locking type: 3-point lever, Key lock
  • Dimensions (H x L x W): 1400mm x 250mm x 600mm
  • Weight: 50 kg
Key Features
  • Rated current of 160A for high-capacity electrical distribution.
  • IP66 ingress protection for dust and water resistance.
  • Constructed from durable stainless steel for longevity.
  • Surface mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in factories and manufacturing plants
  • Commercial: Electrical supply for large buildings and facilities
  • General: Suitable for any application requiring robust electrical enclosures
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Designed to reduce carbon footprint through sustainable materials and manufacturing processes.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 42/24P 160A MCCB-DIN-SS is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power distribution.
