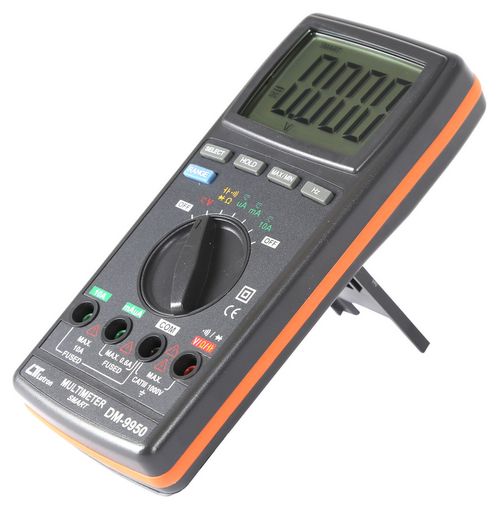

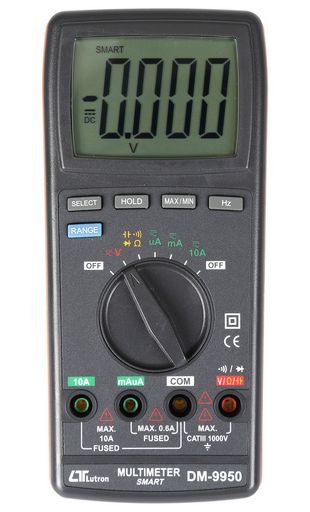

DIGITAL MULTIMETER - LUTRON DM-9950
FULLY AUTO AC/DC, RESISTANCE WITH Hz & CAPACITANCE
Lutron DM-9950 Digital Multimeter with smart functions.
Meet CAT III 1000V, CAT IV 600V.
6000 counts A/D, high resolution.
Measures ACV, ACA, DCV, DCA, ohms, continuity, Hz, Capacitance, Diode with data hold.
Smart operation, Build in 5 intelligent function: " V ", " Ω "," uA ", " mA "," A ".
Both 10 A, uA, mA current range are build fuses for safety consideration.
10 M ohm impedance for voltage circuit.
Built-in overload protection for most ranges.
Operates from one DC 9V battery.
Auto shut off is available to save battery life.
Includes black and red test leads.
DCV (+/- 1%): 6V to 1000V
ACV (+/- 1.2%): 6V to 1000V
DCI (+/- 1.2% to 1.5%): 0.6A to 10A
ACI (+/- 1.2% to 1.5%): 0.6A to 10A
Resistance: 600Ω to 6MΩ
Capacitance: 6nF to 60 μF
Frequency: 40Hz to 1kHz
Code | DM-9950 |
Dimensions | 185x88x40mm |
Display | 64x47mm |
