BM251

Digital Multimeter


$234.70 List price: $312.40
+

Weight: 3.000 kg

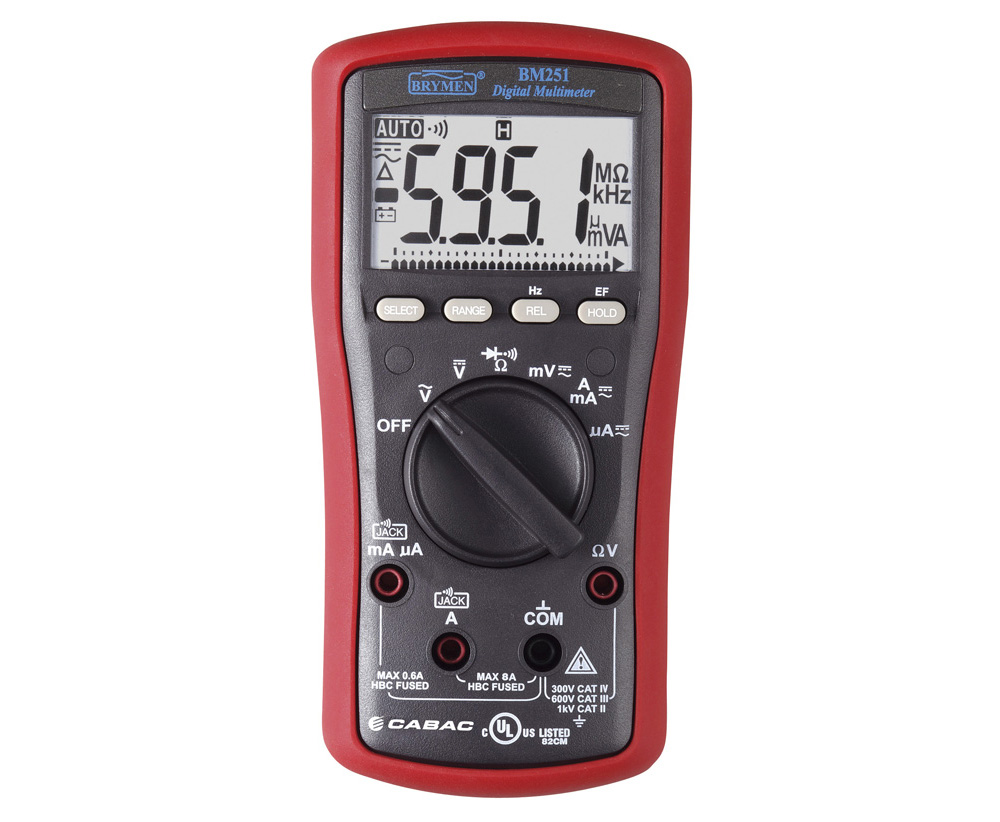

Digital Multimeter

PART NO. BM251

  • Economical compact multimeter for daily use by a contractor - functions include data hold, relative measurement and electric field testing
  • CATIII 600V
  • PC interface with optional BRUA-20X software pack

An economical unit with a perfect balance of price and performance. A good general purpose unit which has most functions needed for daily use by a contractor.


The instrument has many advanced features, such as auto ranging, data hold, auto power off and a high level of protection, to guard against accidental damage. The unique EF (Electric Field) detection, detects live voltage without touching.

Beep-Jack™ Input Warning, beeps as well as displays “InEr” to warn the user against possible damage to the meter due to improper connections to the μA, mA, or A input jacks.

BM251 Features
• CATIII 600V
• Auto & manual ranging with manual ranging override
• Toggle conveniently between primary & secondary functions
• Analog bar graph - fast update rate 40/Sec
• Logic level hz (mv function) - measures hi frequency logic signals
• Line level hz (v function) - measures noisy high voltage ACV frequencies
• Electric field detection
• Data hold - freezes the displaying reading for later view & NCV
• 35/6 digit 6000 count LCD
• Splashproof
• PC-COMM Interface (optional)
• Continuity & diode test
• Compact case
• Beep-Jack™ input Warning
• Lifetime of product Warranty

Compliance and Safety
Meets EN610110-1 2nd Edition CATII 1kV, CATIII 600V & CATIV 300V
Overload protection: μA & mA - 150kA fuse A - 100kA fuse Y - 1050Vms Ω, mV volts - 600V min

EMC Standards
Meets EN61326-1:2006
(EN55022, EN61000-3-2/-3 & EN610110-4-2/-3/-4/-5/-6/-8/-11)



Feature

Range

Accuracy

AC Voltage

60m/600m/6/60/600/1000V

1.0% + 5d

DC Voltage

60m/600m/6/60/600/1000V

± 0.2% + 3d

AC/DC Current

600μ/6000μ/60m/600m/6/10A

± 1% + 3d

Resistance

600/6K/60K/600K/6M/60MΩ

0.7% + 4d

Logic Level Frequency

5Hz to 500kHz

0.03% + 2d

Line Level Frequency

5Hz to 10kHz

0.03% + 3d


Each unit comes with test leads, protective holster, batteries and an operating manual.
Optional batteries: 2 x 1.5V AAA
Size: L161 x W80 x T50mm
Weight: 340g

Ordering Information

Part No. BM251
