Description

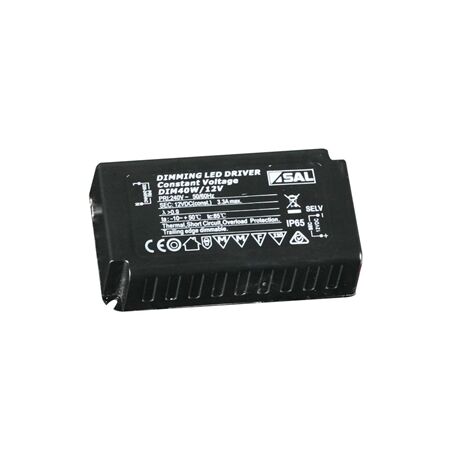

DIMMING CONSTANT VOLTAGE DRIVER
Includes
• DIM40W/12V driver
• 1.2 m flex & 2 pin plug
Features
• Independent compact design
• Trailing edge dimming
• Safe no load operation
• Overload protection
• Short circuit protection
• Overheating protection
• SELV equivalent
• EMC compliant
• Ouput wire leads
• Double insulation
• IP65 weatherproof
technical specification
ModelNo Input
Current Power
Factor Input
Voltage Ta Output
Voltage Tc Dimensions
Controller L x W x H DIM40W/12V0.25A>0.90240V~50Hz85ºC12V DC-10~50ºC110 x 60 x 33 mm
