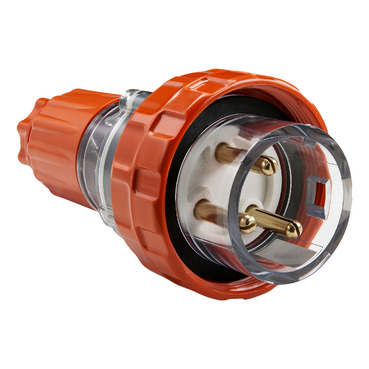

Product Name/Title: Easy56, Plug, 3 Pin, 20A, 250V
Brand: Clipsal
SKU: EY56P320
Alternatively Known As: Easy56 Plug, 3 Pin Plug, Industrial Plug
- Rated current: 20A
- Rated operational voltage: 250V
- Pin number: 3
- Connections: screw terminals
- Cable outer diameter: 7...16 mm
- Wire stripping length: 10...35 mm
- Cable entry: cable gland
- Material: Polycarbonate housing, Brass pins
- Ambient air temperature for operation: -25...75 °C
- IP Rating: IP66 conforming to AS 60529
- Network frequency: 50 Hz
- Cable cross section: 1...4 mm²
- Dimensions (H x L x W): 78mm x 152mm x 78mm
- Weight: 0.298 kg
- 3-pin design for reliable connections.
- Rated for 20A and 250V for robust performance.
- IP66 rated for protection against dust and water.
- Professional installation is recommended for optimal safety.
- Small commercial
- Utility
- Industry
- Complies with AS/NZS 3123 for safety and performance standards.
- Compliant with RoHS directives for reduced environmental impact.
Standard warranty applies.
The Clipsal Easy56 Plug, 3 Pin, 20A, 250V is available now for immediate purchase. Ideal for small commercial and industrial applications.
