Description

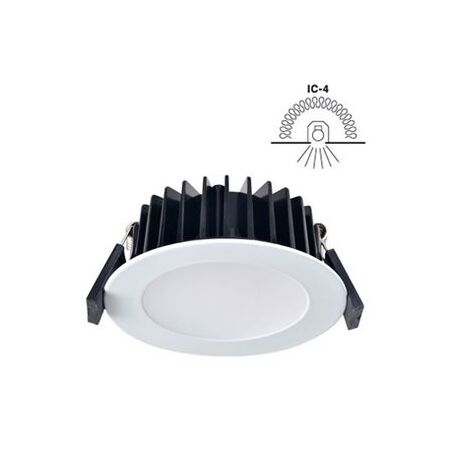

DIMMABLE LED DOWNLIGHT 3 COLOUR TEMPERATURES SELECTABLE WITH A DIP SWITCH
Includes
• S9041 TC LED downlight
• Trailing edge dimmable LED driver
• 1.2 m flex & plug
• Ecogem Seires Installations
• Ecogem Sereies Warranty Card
Options
DIMMING OPTIONS:
• Trailing edge dimming
FITTING COLOUR OPTIONS:
• Black (S9041BK/RING)
• Satin Nickel (S9041SN/RING)
• Silver (S9041SL/RING)
Features
• Select colour temperature with DIP switch
• Die-cast aluminium body
• Powder coated finish
• Opal acrylic diffuser
• High efficiency SMD LED chips
• IP44 weatherproof front only
Installation Type
RECESSED
technical specification
Model No | Colour Temperature | Input Voltage | Power | Luminous Flux | Beam Angle | CRI(Ra) | Dimmable | Dimensions Ø x H | Cut Out Size Ø | Fitting Colour |
---|---|---|---|---|---|---|---|---|---|---|
S9041 TC WH | 3000K/4200K/5700K selectable. | 240V~50Hz | 10W | 800lm/900lm/850lm | 90º | >80 | Yes | 103 x 40 mm | 92 mm | White |
