EDM-300S

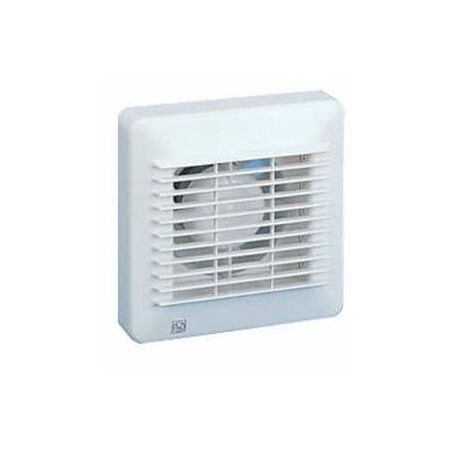

EDM-300S Exhaust Fan

$261.40 List price: $496.60
+ −
30 Days Return Delivery Options
Weight: 2.000 kg

Applications

Ventilation of bathrooms, laundries, toilets and all types of small or confined areas

Installation

The EDM series can be installed for exhausting through a wall or ceiling and along a length of duct when required. External weather proof louvres may also be utilised

Features

Made from tough injection moulded plastic.

Internal thermal protection fitted.

Can be used with ducting: up to 1m for EDM-100 & EDM-200, up to 6m for EDM-300. (presents an alternative to ducted in-line fans where access to the fan is required).

Low Voltage 12V AC unit available for wet areas (IPX7) (requires low voltage transformer).



Additional Features

Model EDM...

Sizes

Backdraft Damper

Run-on timer

S

100, 200, 300

No

-

C

100, 200, 300

Yes

-

CT

100, 200

Yes

Fixed (8 min)

CR

300

Yes

Adjustable (2-20 min)

Models S, CT & CR not available in New Zealand

Technical Data

Model Number

m3/hr†

L/sec†

Fan Speed Rpm

dBA @ 3m

Watts

Volts

IP Rating

EDM-100#

95

27

2450

36

13

240

IP X4

EDM-200#

180

50

2500

40

25

240

IP X4

EDM-300#

280

78

2200

41

35

240

IP X4

EDM-100-12V

85

24

2100

37

7

12

IP X7

# Add 'S', 'C', 'CT' or 'CR' to fan model number as required.
†Air flow without duct & fittings
