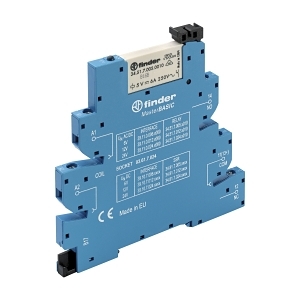

Product Name/Title: Finder 39 Series Master Basic Relay Interface Module 6A 1 Changeover 6V AC DC Coil
Brand: NHP
SKU: 39116VACDC
Alternatively Known As: Relay Module, Interface Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.2 A
- Control Supply Voltage (AC/DC): 6 V
- Electrical Life at Un in Service: 60000 cycles
- Mechanical Life: 10000000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 87mm x 91mm x 62mm
- Weight: 0.2 kg
Key Features
- 1 changeover contact for versatile switching options.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC control
- General: Any application requiring relay control for AC/DC circuits
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances energy efficiency by monitoring and managing electrical loads.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 39 Series Master Basic Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable relay control.
