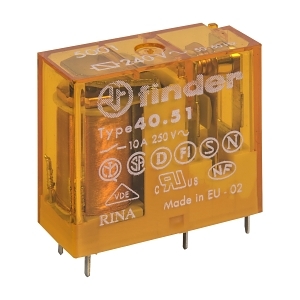

Product Name/Title: Finder 40 Series Miniature Printed Circuit Board Relay 10A 1 Changeover 240V AC Coil
Brand: NHP
SKU: 4051240VAC
Alternatively Known As: Miniature PCB Relay, 10A Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 2500 VA
- Rated Switching Power at AC 15 (230 V): 500 VA
- Breaking Capacity at DC 1 (30 V): 10 A
- Breaking Capacity at DC 1 (110 V): 0.3 A
- Control Supply Voltage at AC 50/60 Hz: 240 V
- Electrical Life: 200,000 cycles
- Mechanical Life: 10,000,000 cycles
- Max Shock Acceleration: 20 g
- Max Vibration Acceleration: 25 m/s²
- Material of Contact: Silver nickel
- Material of Contact Insert: Thermoplastic
- Suitable for Mounting on PCB: Yes
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 10A nominal current with 1 changeover contact.
- Wide operating temperature range of -40 to 85 °C.
- Long mechanical life of up to 10 million cycles.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 40 Series Miniature PCB Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
