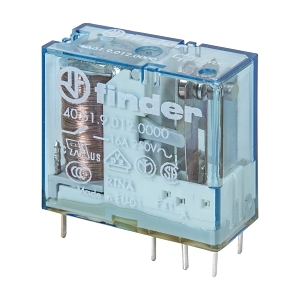

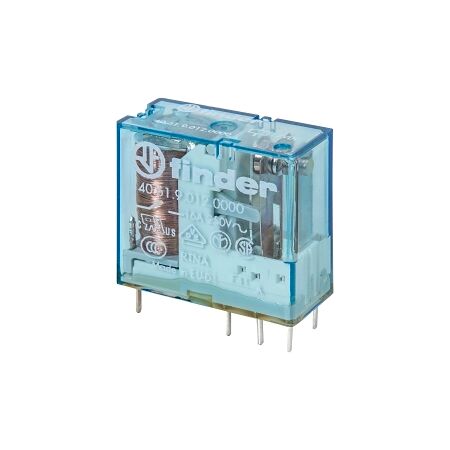

Product Name/Title: Finder 40 Series Miniature Printed Circuit Board Relay 10A 2 Changeover 12V DC Coil
Brand: NHP
SKU: 4062912VDC
Alternatively Known As: Miniature PCB Relay, 10A Relay, DC Coil Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 2500 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 10 A
- Control Supply Voltage: 12 V DC
- Type of Electric Connection: Plug-in connection
- Material of Contact: Silver nickel
- Material of Contact Insert: Thermoplastic
- Max Shock Acceleration: 20 g
- Max Vibration Acceleration: 25 m/s²
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- Mono stable drive switching attitude.
- Plug-in connection for easy installation.
- Electrical life of 100,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 40 Series Miniature PCB Relay 10A 12V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
