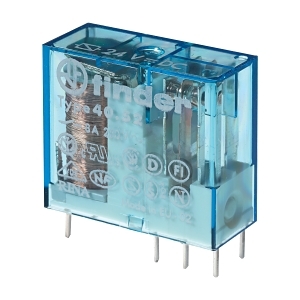

Product Name/Title: Finder 40 Series Miniature Printed Circuit Board Relay 8A 2 Changeover 12V DC Coil
Brand: NHP
SKU: 405212VDC
Alternatively Known As: Miniature PCB Relay, 12V DC Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 2 changeover
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 8 A
- Breaking Capacity at DC 1 110 V: 0.3 A
- Control Supply Voltage: 12 V DC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -45 to 85 °C
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 8A nominal current with 2 changeover contacts.
- Compact design suitable for PCB mounting.
- Rated for 12V DC coil operation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 40 Series Miniature PCB Relay 8A 12V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
