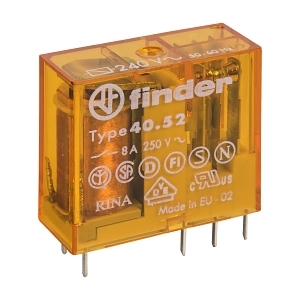

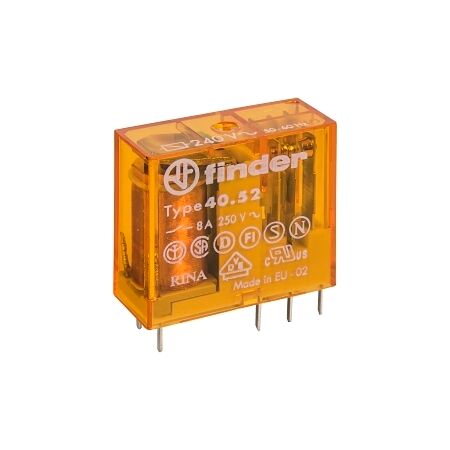

Product Name/Title: Finder 40 Series Miniature Printed Circuit Board Relay 8A 2 Changeover 240V AC Coil
Brand: NHP
SKU: 4052240VAC
Alternatively Known As: Miniature PCB Relay, 8A Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 8 A
- Breaking Capacity at DC 1 110 V: 0.3 A
- Control Supply Voltage at AC 50 Hz: 240 V
- Control Supply Voltage at AC 60 Hz: 240 V
- Type of Electric Connection: Plug-in connection
- Material of Contact Insert: Thermoplastic
- Material Contact: Silver nickel
- Suitable for Mounting on PCB: Yes
- Operating Temperature: -45-85 °C
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 8A nominal current with 2 changeover contacts.
- Wide operating voltage range of 192-264V AC.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical circuits
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 40 Series Miniature PCB Relay 8A 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
