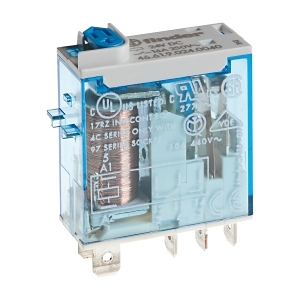

Product Name/Title: Finder 46 Series Miniature Relay 16A 1 CO 24V DC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4661007424VDC
Alternatively Known As: Miniature Relay, 16A Relay, DC Coil Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 440 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 12 A
- Breaking Capacity at DC 1 110 V: 0.5 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life Service Cycles: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 16A nominal current with 1 changeover contact.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 16A 1 CO 24V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
