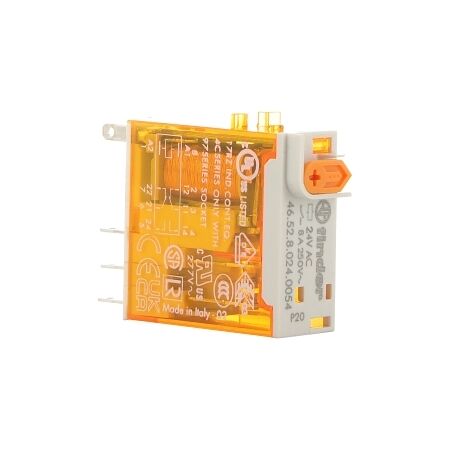

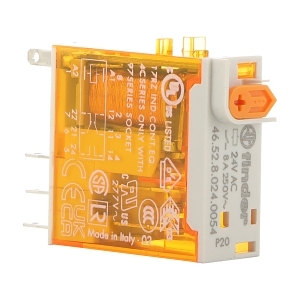

Product Name/Title: Finder 46 Series Miniature Relay 8A 2 CO 24V AC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4652005424VAC
Alternatively Known As: Miniature Relay, 24V AC Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 440 V
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 6 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage: 24 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 8A nominal current with 2 changeover contacts.
- LED indication and mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- General purpose applications in industrial and commercial settings.
- Suitable for automation and control systems.
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 8A 2 CO 24V AC Coil is available now for immediate purchase. Ideal for general purpose applications in industrial and commercial settings.
