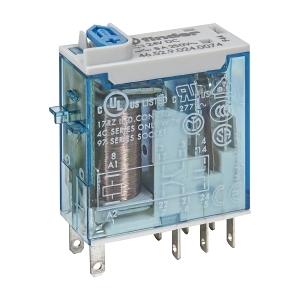

Product Name/Title: Finder 46 Series Miniature Relay 8A 2 CO. 24V DC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4652007424VDC
Alternatively Known As: Miniature Relay, 24V DC Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 440 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC-1: 2000 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical and mechanical life cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 8A 2 CO. 24V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
