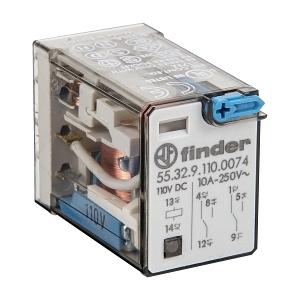

Product Name/Title: Finder 55 Series Miniature GP Relay 10A 2CO 110V DC Coil with PB plus LED plus Mech Indicator
Brand: NHP
SKU: 55320074110VDC
Alternatively Known As: Miniature Relay, GP Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage AC: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 2500 VA
- Rated Switching Power at AC 15 230 V: 500 VA
- Breaking Capacity at DC 1 30 V: 10 A
- Breaking Capacity at DC 1 110 V: 0.25 A
- Control Supply Voltage: 110 V DC
- Electrical Life: 200,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- LED indication and mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature GP Relay 10A 2CO 110V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
