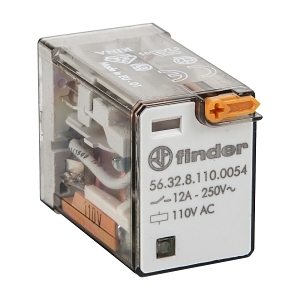

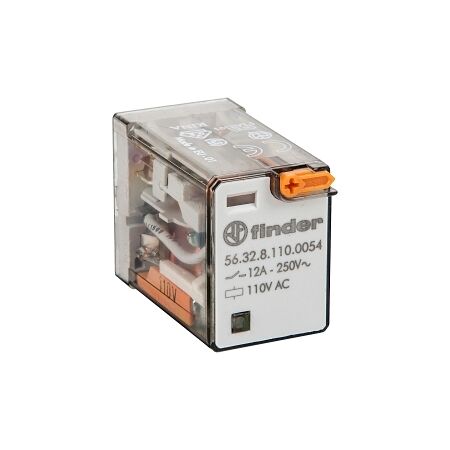

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 110V AC Coil with PB plus LED plus Mechanical Ind
Brand: NHP
SKU: 56320054110VAC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 230 V: 700 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver nickel
- Material of Contact Insert: Duroplast
- Plug-in Connection: Yes
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Rated for 12A with 2 changeover contacts.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 110V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
