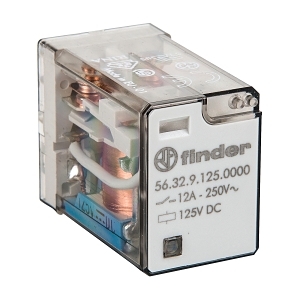

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 125V DC Coil
Brand: NHP
SKU: 5632125VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 2 (Change Over Contact)
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 (230 V): 700 VA
- Breaking Capacity at DC 1 (30 V): 12 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage (US) at DC: 125 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with a nominal current of 12A.
- Plug-in connection for easy installation.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 125V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
