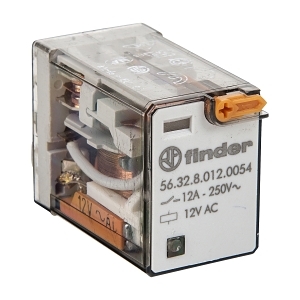

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 12V AC Coil with PB plus LED plus Mechanical Ind
Brand: NHP
SKU: 5632005412VAC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 230 V: 700 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver nickel
- Material of Contact Insert: Duroplast
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 12A nominal current with 2 changeover contacts.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 12V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
