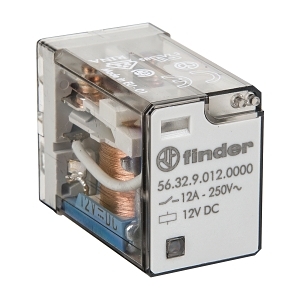

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 12V DC Coil
Brand: NHP
SKU: 563212VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 (230 V): 700 VA
- Breaking Capacity at DC 1 (30 V): 12 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage (DC): 12 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 50,000,000 cycles
- Max Shock Acceleration: 20 g
- Max Vibration Acceleration: 17 m/s²
- Max Vibration Frequency Operational: 150 Hz
- Material of Contact: Silver nickel
- Material of Contact Insert: Duroplast
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 12A switching capacity.
- Plug-in connection for easy installation.
- Wide operating temperature range from -40 to 70 °C.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 12V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
