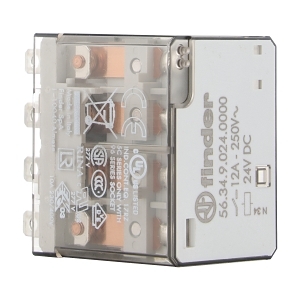

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 4CO 24V DC Coil
Brand: NHP
SKU: 563424VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, DC Coil Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC-1: 3000 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 12 A
- Breaking Capacity at DC-1 (110 V): 0.5 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.1mm x 40.8mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Rated for 12A and 24V DC coil operation.
- High electrical life of 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 4CO 24V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
